This document is intended to orient Service Partners and their developers seeking to integrate MasterPass as a checkout option for merchant's commerce sites or mobile application.

How does MasterPass work?

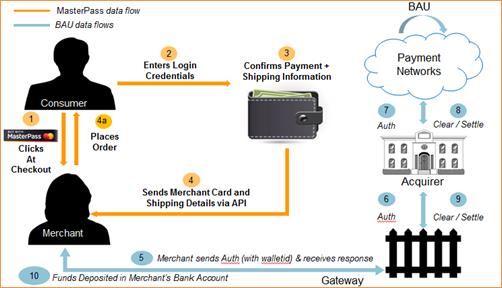

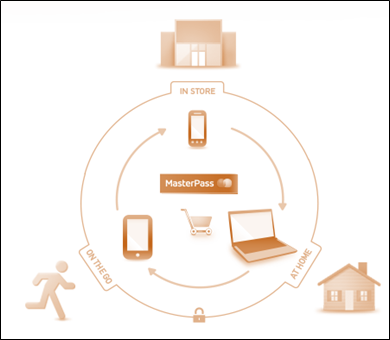

MasterPass is a service that enables consumers to store, manage and securely share their payment, shipping and rewards information with the websites and mobile apps they transact with. MasterPass supports checkout on full and mobile websites, as well as in-app purchases on Android^™ and iOS^™ apps.

MasterPass User Interface

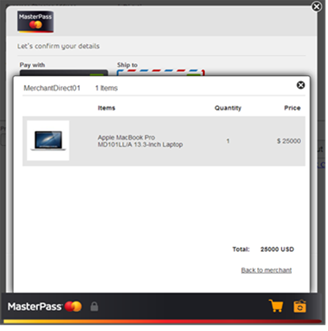

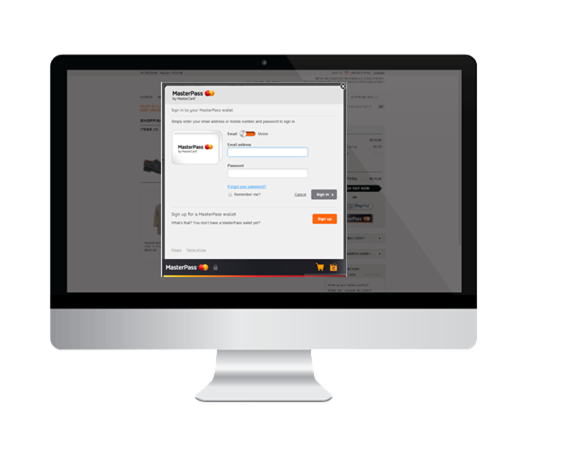

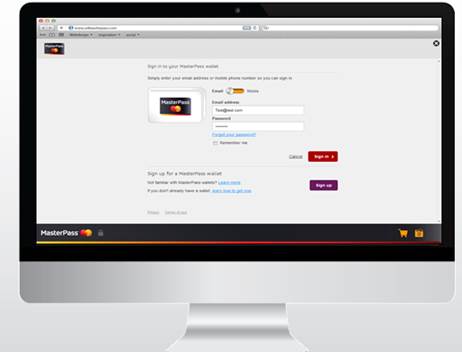

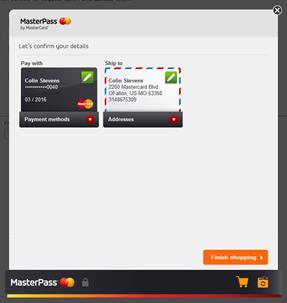

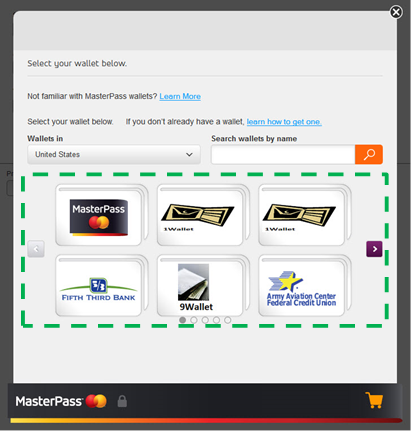

The MasterPass user interface, or Lightbox, floats the MasterPass wallet interface on top of the Merchant's web page through illuminated overlays, and backgrounds dimmed to 0.7 opacity. This modern method allows a consumer to interact with their MasterPass digital wallet without having to leave the merchant's page. MasterPass Lightbox is built in a responsive design style allowing it to respond dynamically to the various screen sizes and orientations.

MasterPass supports the following displays:

• · Standard Lightbox display
• · Standard full screen display

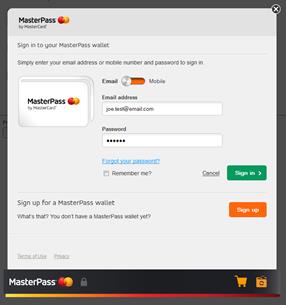

Standard "Lightbox Display" (desktop and laptop)

At full screen, where the browser is set to 100% height and width, the overall Lightbox dimensions are 740 pixels (height) by 700 pixels (width). This is inclusive of the Lightbox header and footer. The interior Lightbox dimensions are 590 pixels (height) by 680 pixels (width). The interior Lightbox dimensions specify the content area within which the Partner can design (see screenshot below).

If the height of the browser is reduced so that the entire Lightbox has a height of 740 pixels and the width is maintained, the content container has the following dimensions: 530 pixels (height) by 680 pixels (width).

If the browser is set to 100% maximum width, but is less than 530 pixels in height (for the content container), vertical scrolling will appear.

If the browser is set to less than 680 pixels in width the Lightbox layout will change to accommodate small screen formats (i.e. phone, smaller tablets). There is a 320 pixel width threshold for the content container.

Standard Mobile Display (.mobi)

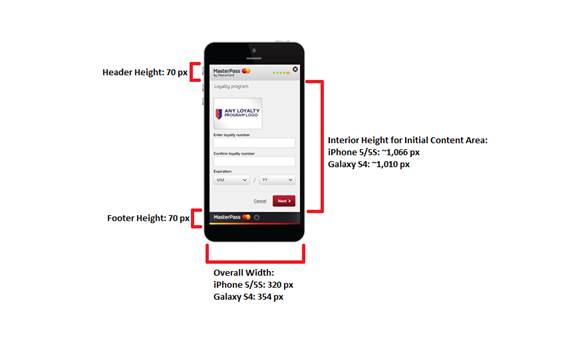

Within the .mobi experience, the header and footer are approximately 70 pixels high except for the iPhone 5/5S, which has a header and footer which are approximately 30 pixels high. The interior content area for mobile devices is content dependent. The initial view of content is based on the overall screen sizes. Content that does not fit within the initial view of content can be accessed by scrolling. There will not be a landscape view for mobile; only portrait will be supported.

Standard Full Screen Display

Under certain conditions, such as when the consumer's browser does not support the Lightbox display (older browser), or if the merchant has not yet made coding changes to invoke the Lightbox display, or if the URL requesting the Lightbox display is different from the merchant specified origin URL, then MasterPass will render the wallet experience in full screen. This full screen wallet experience supports all functionality and design as that of the Lightbox display.

Overview

MasterPass is introducing new checkout options that offer merchants greater flexibility and control over the MasterPass checkout experience.

	Merchant		MasterPass			Merchant
Experience	Logs into Merchant	Consumer Clicks	Signs into Wallet	Finalizes Payment Method/ Address	Reviews/ Submits Order	Confirms Order	Receipt/ Thank You Page
Standard Checkout		Buy with MasterPass	X	X	X	(recommended)	X
Connected Checkout	X	Checkout	X			X*	X

*If applicable, advanced authentication, will be invoked after this step.

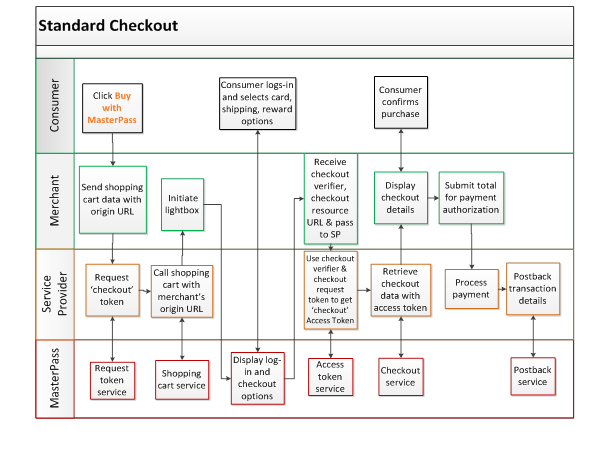

MasterPass Merchant Standard Checkout process flow

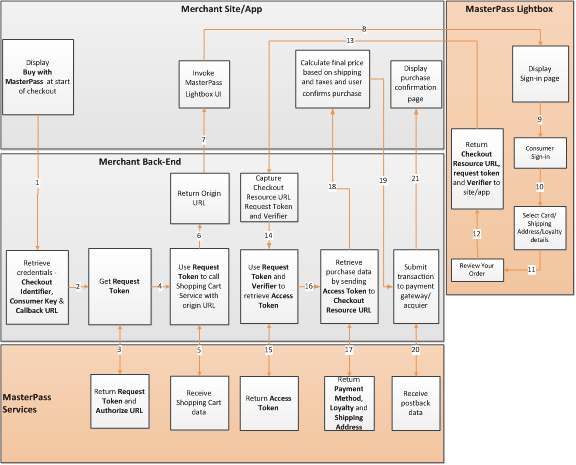

The flows below depict the Standard MasterPass Checkout flow with the Lightbox MasterPass UI. Merchants should use this flow for a non-recognized (guest) user.

MasterPass Connected Checkout Experience

'Connected Checkout" enables MasterPass merchants to provide a customized checkout experience to their consumers across all connected channels. In the connected checkout model, consumers who have paired their wallet with the merchant allow that merchant to retrieve the consumer's pre-checkout data (shipping, and other wallet information, without the actual card number without the consumer having to log in to their wallet. The actual PAN will be provided to the merchant only after the consumer logs in to their wallet (by entering only the wallet password). Data shared in connection with the "Connected Checkout" can only be used to implement checkout and must be destroyed immediately following the check-out experience. No data shared during the "Connected Checkout" experience may be retained after the checkout is completed. Adherence to MasterPass branding requirements is required. (for display of Wallet Partner logo and MasterPass logo near the pre-checkout information).

Connected checkout is supported by 3 components.

Pairing of wallet

The consumer consents to 'pair' their wallet account with their account on the merchant side (consumer's merchant account), by agreeing to Connected Checkout. Pairing can happen during Checkout or outside of checkout on the merchant site/app. Pairing enables the consumers' MasterPass wallet data to be shared with the merchant during current and/or future visits to merchant app/site. This is accomplished by passing a Long Access token to the merchant. No cardholder data should be retained by the Merchant or Service Provider in between checkouts.

NOTE: Long Access token is a one-time use token. Each time a call using Long Access Token is made, a new Long Access token will be passed back to the merchant. This new Long Access token will then need to be stored, to be used the next time.

Pair with MasterPass Wallet during Checkout

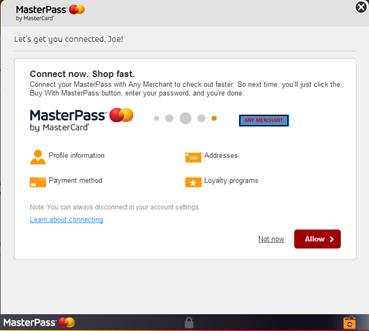

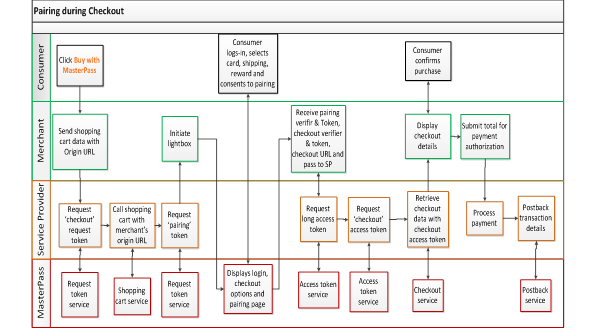

In this experience, a consumer pairs their wallet with a merchant while performing checkout. The pairing process starts when a consumer clicks the 'Buy with MasterPass' button on the merchant site. This begins a set of exchanges that will bring the consumer through MasterPass and back out to the merchant again. If the consumer agrees to pair their wallet with the merchant, the consumer's pre-checkout data will be available to the merchant during subsequent checkouts without the consumer having to log in to their wallet. When checkout is completed, the consumer data must be immediately deleted.

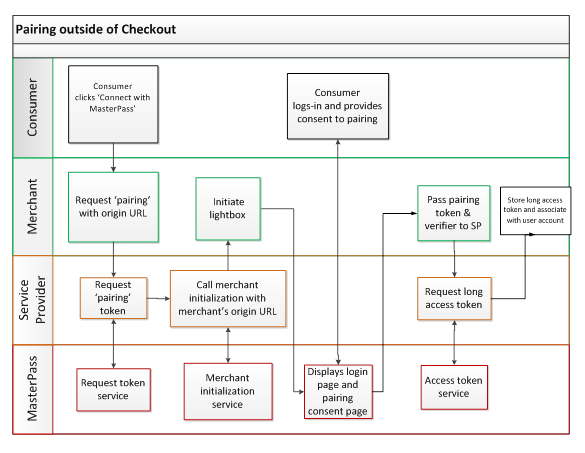

Pair with MasterPass Wallet outside of a Checkout

In this experience, a consumer pairs their wallet with a merchant while not performing checkout e.g. account management. The pairing process starts when a consumer clicks the 'Connect with MasterPass' button on the merchant site. This begins a set of exchanges that will bring the consumer through MasterPass and back out to the merchant again. If the consumer agrees to pair their wallet with the merchant, the consumer's pre-checkout data will be available to the merchant during their subsequent checkouts without the consumer having to log in to their wallet. When checkout is completed, the consumer data must be immediately deleted.

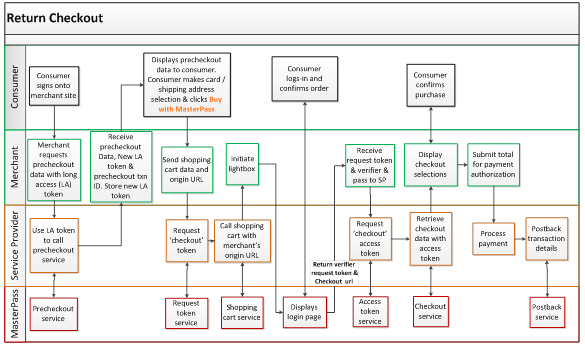

Return Checkout

Once the consumer has paired their wallet account with merchant account, when the consumer returns to the merchant site/app and logs in to their merchant account, the Merchant, through the Service Provider, submits the token to MasterPass to retrieve the consumer's up to date wallet information (card details without card number, addresses etc.). The merchant can then present this information to the consumer as part of their own experience, with the ability to streamline/personalize the consumer's experience during Pre-checkout. Consumers can then checkout easily. The actual PAN will be provided to the merchant only after the consumer logs in to their wallet (by entering the wallet password).

Data shared in connection with the "Return/Connected Checkout" can only be used for the express purposes permitted in the MasterPass Operating Rules and must be removed immediately following the check-out experience. No data shared during the "Return/Connected Checkout" experience may be retained after the checkout is completed. Service Providers are responsible for ensuring that merchants participating in MasterPass through the merchant by merchant model comply with this requirement.

Unpairing

A consumer can 'unpair' the token or disconnect their current pairing consent any time, using MasterPass account management. This will prevent the merchant from accessing the consumer's wallet information going forward.

Incorporating MasterPass into your site or app

Enabling checkout with MasterPass on-behalf of your merchant site or mobile app is straightforward-here are the required activities for the Merchant by Merchant onboarding process

Merchant by Merchant Onboarding Process

This process should be used if merchants will create their own accounts. Merchants will also be required to approve the checkout projects in this model. Step by step instructions can be found here.

Activity	Actor	Steps	Environment
1. Service Provider Registration and Setup	Service Provider	Create Service Provider account	MasterPass Partner Portal
2. Add Developer to Service Provider Profile	Service Provider	Add Developer to Service Provider Profile	MasterPass Partner Portal
3. Merchant Registration and Setup	Merchant	Create Merchant account, set shipping profile, rewards and advanced authentication	MasterPass Merchant Portal
4. Add Service Provider to be Merchant Developer	Merchant	Invite Service Provider to manage integration	MasterPass Merchant Portal
5. Developer Registration and Request Sandbox Credentials	Developer	Create MasterPass Developer account	MasterPass Partner Portal
		Create Developer Zone account	MasterCard Developer Zone
		Generate developer's sandbox and production keys
		Review sample code/SDK and design services integration
		Request access to merchant's sandbox credentials	MasterPass Partner Portal
6. Review Integration Project & Approval	Merchant	Approve and grant access to merchant's sandbox key	MasterPass Merchant Portal
7. Access Sandbox Credentials	Developer	Use merchant's sandbox key to test against MasterPass sandbox environment	Service Provider Engineering Environment
8. Request Production Credentials	Developer	Request access to merchant's production credentials	MasterPass Partner Portal
9. Review Integration Project & Approval	Merchant	Approve and grant access to merchant's production key	MasterPass Merchant Portal
10. Production Migration	Developer	Update MasterPass API endpoints, Consumer key, Callback URL and Private Key (p12), if different than Sandbox.	Service Provider Production Environment

The following accounts will be created during the onboarding process. Please use the following table to record the account information for future reference

Note: Email address must be unique for each account.

Account Type	Details	Account Info
Partner Portal - Service Provider Account	Created by Service Provider business owner. This id should be used to login at https://masterpass.com/SP/Partner/Home Go here to create Service Provider account, invite developers, etc.	Userid: __________ Email: ___________
Partner Portal - Service Provider Developer Account(s)	Created when the Service Provider invites a developer. It's a system generated user id. This id should be used to login at https://masterpass.com/SP/Partner/Home Go here to create checkout project, get checkout project details etc.	Userid: __________ Email: ___________
Developer Zone - Developer Account(s)	Created by developer and is used for key exchange. This id should be used to login at https://developer.mastercard.com Go here to perform key exchange, download Sample Applications, integration guide etc.	Userid: __________ Email: ___________
Merchant Portal - Merchant Account(s)	A merchant account per merchant who will invite partner to integrate their system with MasterPass. This id should be used to login at https://masterpass.com/SP/Merchant/Home Go here to create merchant account, invite Service Provider, create shipping profiles, rewards, approve checkout projects etc.	Userid: __________ Email: ___________

By the end of the integration, your site or mobile app should be able to:

1. Display "Buy with MasterPass" button at the start of the checkout experience.
2. Display "Connect with MasterPass" button.
3. Invoke and display the MasterPass Lightbox.
4. Relay MasterPass checkout requests to the MasterPass service.
5. Get Precheckout data for consumers that have consented to pair their wallets
6. Receive consumer's payment card, shipping address, rewards and 3DS data from MasterPass service
7. Process card and shipping information using existing process

Please note your implementation must satisfy all criteria in the Q/A checklist.

1. Service Provider Registration and Setup-Service Provider Activity

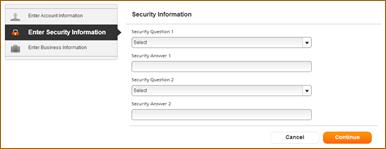

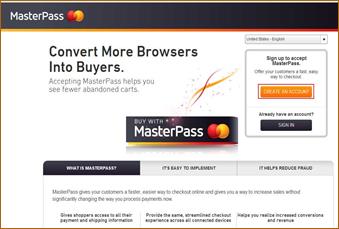

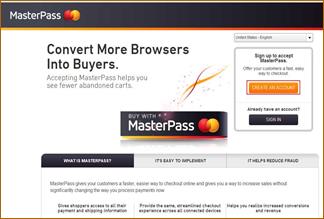

From the MasterPass Partner Portal, select the country - language from the dropdown and click the Create an Account button to start the registration process. You will be presented with a modal window, into which you will enter the invitation code. Please reach out to your MasterCard representative to obtain an invitation code that will grant you access and allow you to register within the partner portal. Follow the steps to create a Service Provider account.

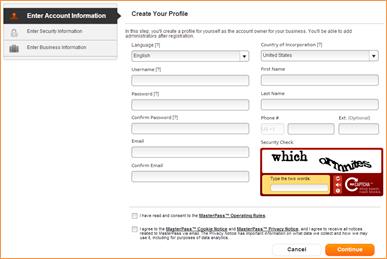

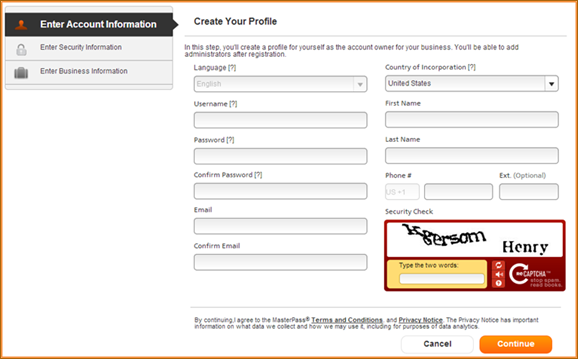

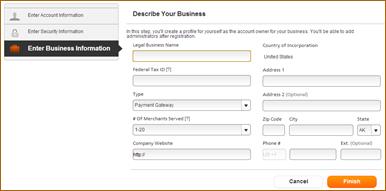

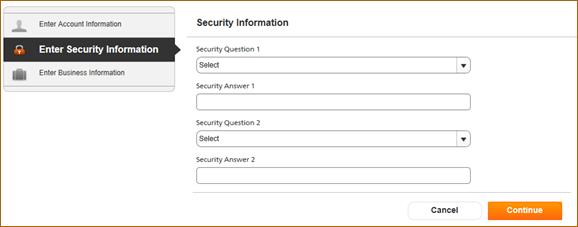

Create Partner Account

Enter Invitation Code

At this point, you will have a Service Provider account created.

2. Add Developers to Service Provider Profile-Service Provider Activity

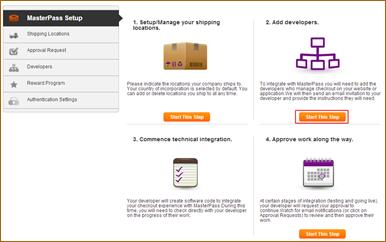

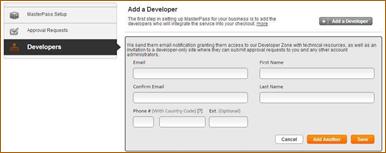

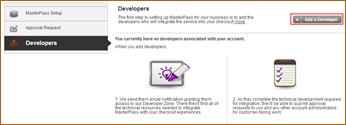

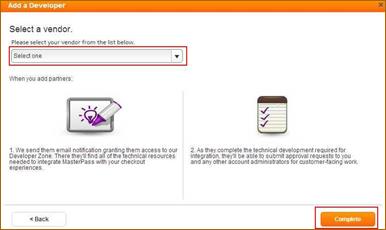

After account creation, you will add developers to your account. Click on Manage Setup and add developers to your Service Provider account. To get started, click the Start This Step button from the MasterPass Setup page.

Please forward this integration guide to each invited developer. Each developer will receive two invitation emails from MasterPass, indicating that he/she has been invited to handle the technical integration of MasterPass on-behalf of your company. This integration guide will guide the developer through the integration process.

Your developer will navigate to the MasterPass portal and complete sign-up. He/she would then go to MasterCard Developer Zone to generate API keys.

3.Merchant Registration and Setup-Merchant Activity

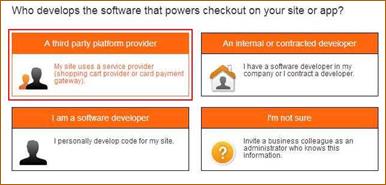

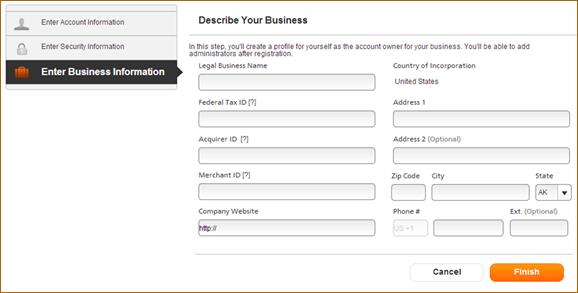

From the MasterPass Merchant Portal, select the country - language from the dropdown and click the Create an Account button to start the registration process. You will be presented with a modal window, into which you will enter the invitation code. After entering the invitation code, you will be presented with the option to select the registration type. Select Merchant to continue with the registration process as shown in screen shots below.

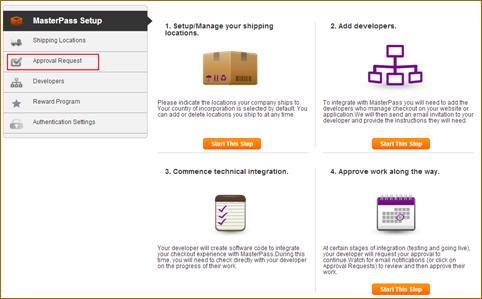

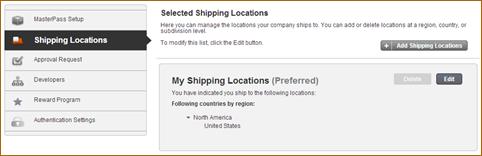

After the merchant account has been created, select "Shipping Locations" to manage your shipping options. Merchants can have multiple shipping profiles and can also set a preferred shipping profile option.

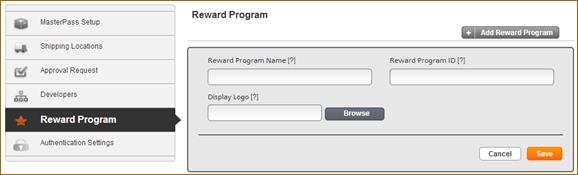

Select "Reward Program" to enter details about your reward/ loyalty program. The name of the Reward Program and Logo provided will be displayed to the consumer during checkout. Here are the field details

• Reward Program Name: Unique, Min 1- Max 30 characters, String
• Reward Program ID: Required, Unique, Min 1- Max 10 char, Alphanumeric, Non-Editable
• Logo: Required, Logo size 65 x 60 pix

PLEASE NOTE: Test reward programs or logos must not be added as they become visible to end consumers.

If available, select "Authentication Settings" to enable 3DS Authentication. Where available, 3DS may be opted into for MasterCard, Maestro, and Visa only.

If 3DS is available to your country, you may enable it by completing the Authentication Settings section. If 3DS is not available to you, you will not see the Authentication Settings tab.

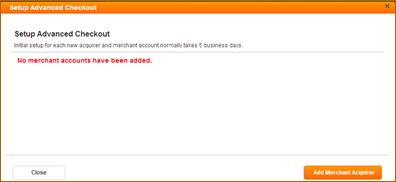

Select "Advanced Checkout" on the Authentication Settings page, which means that 3DS will be run for all checkout transactions for the appropriate card brand. To enable 3DS for your transactions, you will need to supply the details of your 3DS-enabled Acquirer accounts. To add accounts, click "Manage Accounts" and then click "Add Merchant Acquirer"

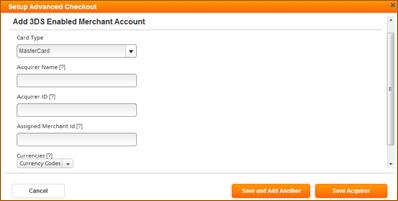

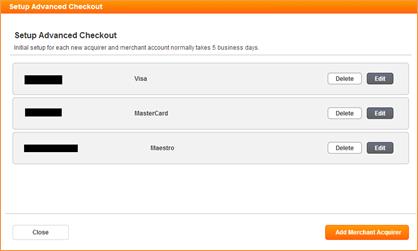

Provide the details requested for each of your MasterCard, Maestro, and/or Visa accounts.

Note: Initial setup for each new acquirer and merchant account normally takes 5 business days. Currently, 3DS can only be tested in production (not in sandbox).

If you enable your account up for 3DS, you will have the option to "downgrade" the transaction to Basic at time of checkout by setting the value of auth_level parameter to "basic"

4. Invite Service Provider to be Merchant's Developer-Merchant Activity

Sign in to your merchant's account from the MasterPass Merchant Portal. From the landing page, you will add developers. Start the "Add Developers" process and select "A third party platform provider". Then pick the Service Provider from the drop down list.

The Service Provider's Developer will receive invitation emails from MasterPass, indicating that he/she has been selected to handle the technical integration of MasterPass Services on-behalf of the Merchant. The integration guide will guide the developer through the integration process.

5. Developer Registration, API Keys, Initiate Development & Request Approval-Developer Activity

Developers invited to integrate MasterPass on behalf of a merchant will manage their integration activities through two portals:

1. MasterPass Merchant Portal (http://masterpass.com/online/SP/Merchant/Home)
2. MasterCard Developer Zone (http://developer.mastercard.com)

MasterPass Developer Account

Developers will use the MasterPass Merchant Portal to request, and access merchant-specific integration credentials, which will be used when interacting with the MasterPass web services. After the Service Provider invites you as a developer, you should have received your MasterPass Developer credentials in two emails from MasterPass.

MasterCard Developer Zone Account

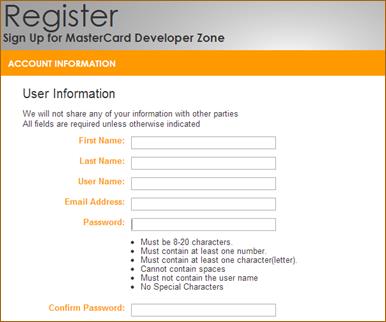

Developers invited to integrate MasterPass on behalf of a merchant/service provider will use MasterCard Developer Zone to view integration documentation and generate developer keys. To create a Developer Zone account, visit Developer Zone and click Register. After submitting the form, be sure to activate the account using the confirmation email.

Generate MasterCard Developer Zone Developer API Keys

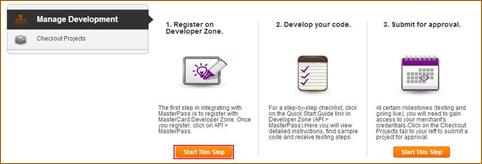

After creating your account, you will need to generate two sets of API keys (one each for the sandbox and production environments). To make keys easy to distinguish, it's recommended to prefix sandbox keys with "SBX_" and production keys with "PRD_".

Create Sandbox Key

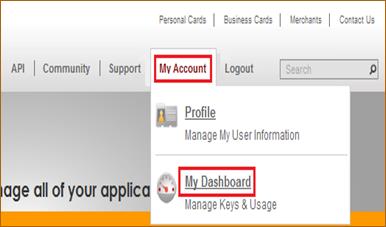

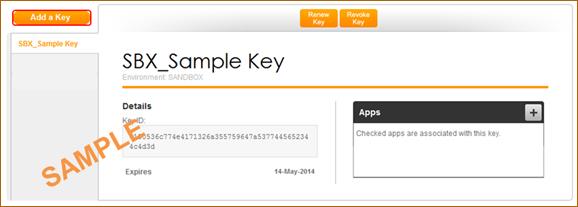

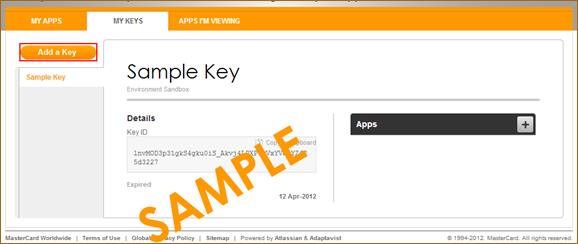

To create a Sandbox key, click My Account, then My Dashboard.

On the My Dashboard page, click My Keys button and then click on Add a Key button.

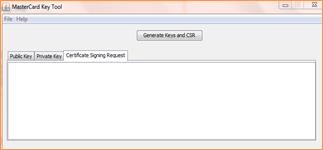

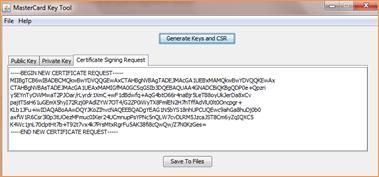

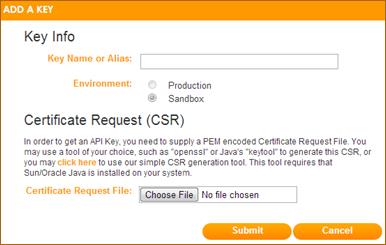

In order to get an API Key, you need to supply a PEM encoded Certificate Request File. You may use a tool of your choice, such as "openssl" or Java's "keytool" to generate this CSR, or you may use the CSR generation tool on the developer zone portal. Click here to see instructions for using CSR generation tool.

Complete the form, select Sandbox for Environment, and click Submit.

You will have Sandbox Key ID at this point.

Create Production Key

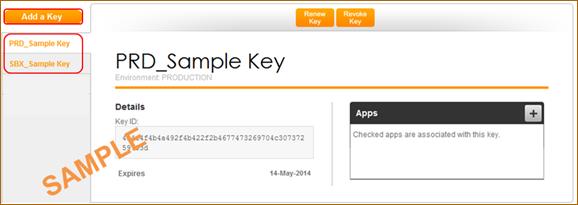

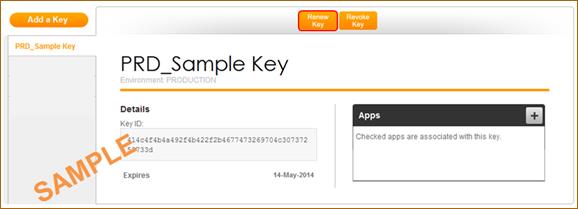

To create a Production API key, return to My Dashboard and click on My Keys. Then click on Add a Key and make sure you select Production environment. Complete the form and click Submit.

At this point, developers will have Sandbox and Production Key ID. These IDs will be used when submitting a checkout project to the merchant for approval.

Note: Keys expire after 1 year before which they should be renewed by initiating the Developer Zone Key Renewal process. Notifications at 30, 15 and 1 day prior to key expiration will be sent to the email address associated with the Developer Zone account. Your integration will stop working if the keys are expired.

Initiate Development

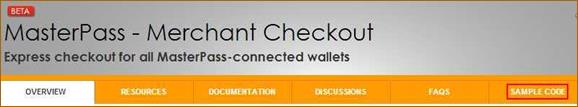

At this point, developers should begin developing their own implementation. Sample Applications for .NET (C#), Java, PHP and Ruby are available for download on Developer Zone.

Request Merchant's Sandbox Credentials

Prior to allowing the developer's code to interact with the MasterPass service (on-behalf of a merchant) the merchant must approve the checkout project created by the developer. The developer will make two separate approval requests. The first request is to grant the developer access to credentials that will enable his/her code to transact with the MasterPass sandbox environment on-behalf of the merchant. The sandbox environment does not contain real consumer data. The second is for production credentials, which will enable real transactions.

Developers will use MasterPass Merchant Portal to request, and access merchant-specific integration credentials, which will be used when interacting with the MasterPass services. The credentials are requested by submitting a checkout project.

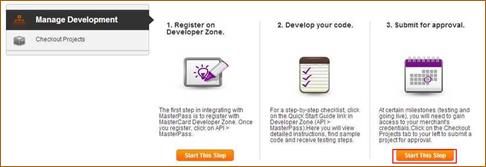

To get started, sign into the MasterPass Merchant Portal. Under Manage Development, click Checkout Projects -> Create New Project and complete the New Project creation wizard.

Select applicable Merchant from the drop-down.

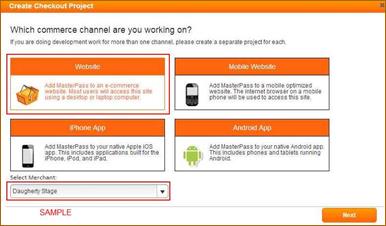

Select Commerce Channel

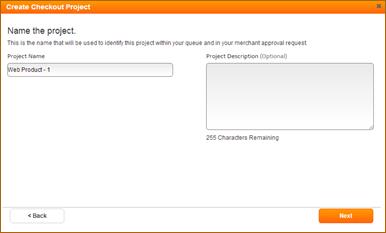

Enter Project Name, Project Description.

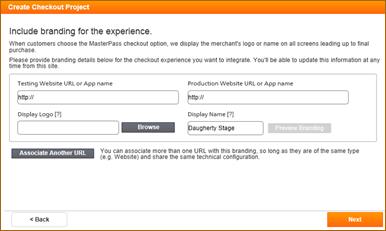

Enter branding elements for the merchant (Merchant Name, Logo), domain-level URL that consumers will be redirected from in the sandbox and production enviornments. Merchant Name will be displayed if no logo is provided. The recommended logo dimensions for a website project are 100X60 pixels; the recommended logo dimensions for a mobile project is 80X30 pixels.

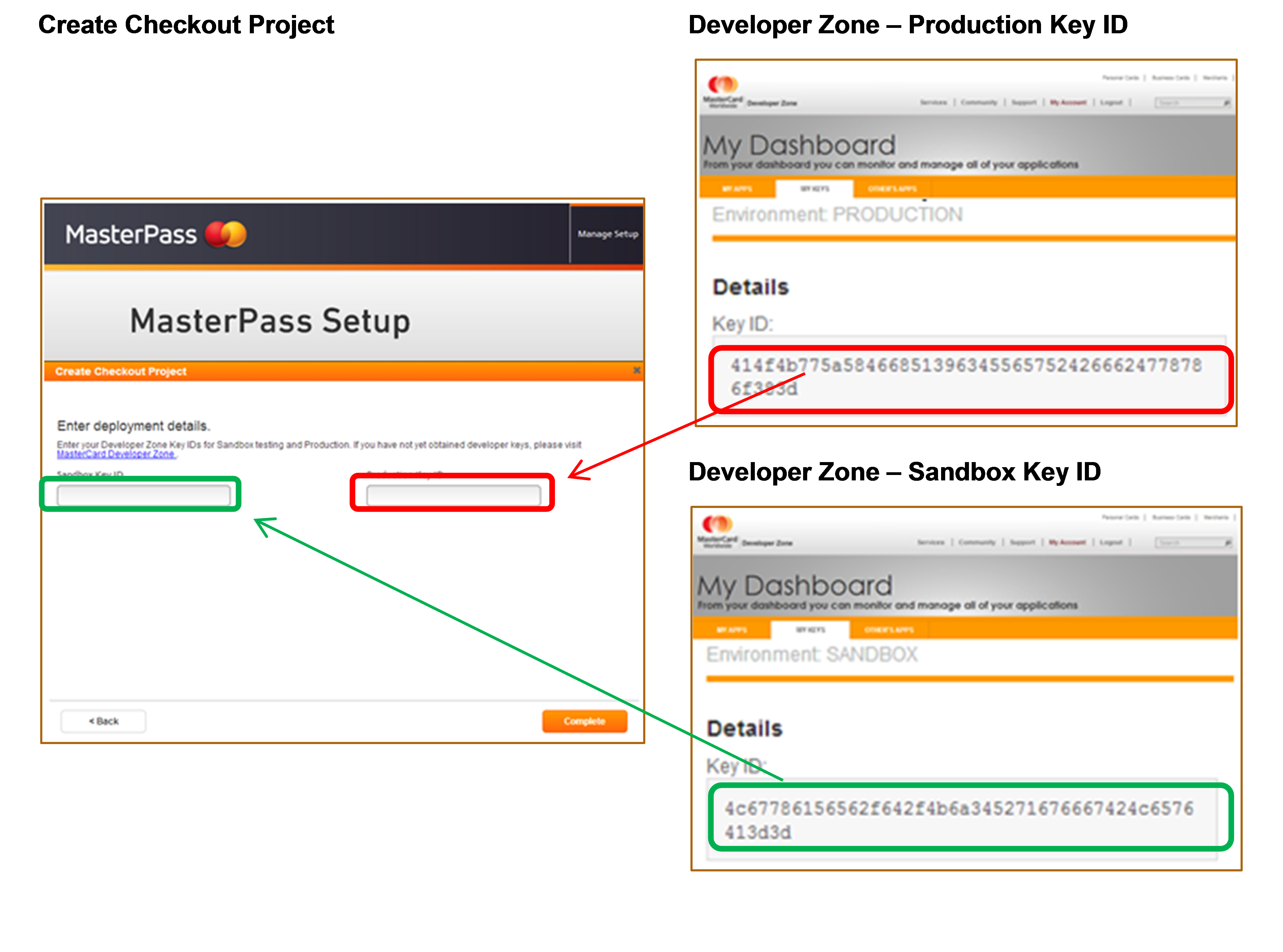

Enter the sandbox and production Key IDs that were created on from MasterCard Developer Zone.

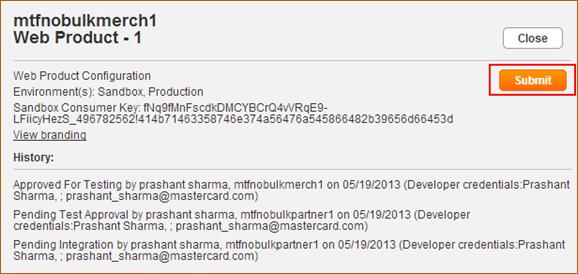

To submit the project for sandbox approval, click Submit.

6. Review Integration Project & Approval/Reject-Merchant Activity

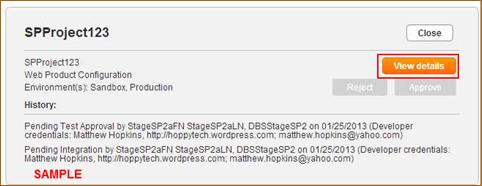

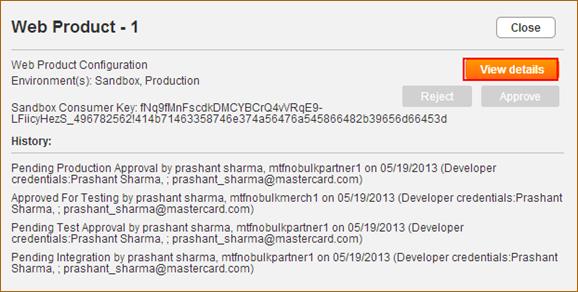

After the Developer submits the request for sandbox credentials, the Merchant will get an email notification. The Merchant will log on to the MasterPass Merchant Portal, review the branding and provide approval.

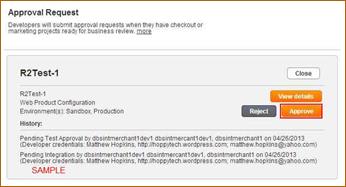

After clicking Approval Requests on the navigation bar, the user will see a list of open requests. Click View Details.

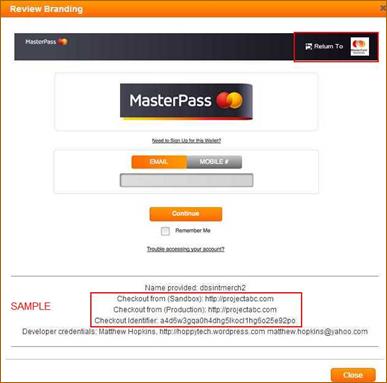

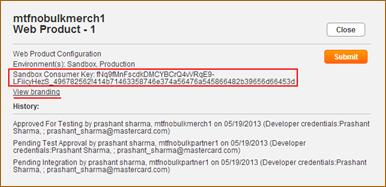

Merchant should ensure that the merchant name, URL and logo are correct by clicking on View Details to approve it. Please note that the consumer facing UI will be the new MasterPass Lightbox user interface, and the branding shown will be different in the end user experience. The MasterPass interface in this step is illustrative only and not representative of actual end consumer user interface.

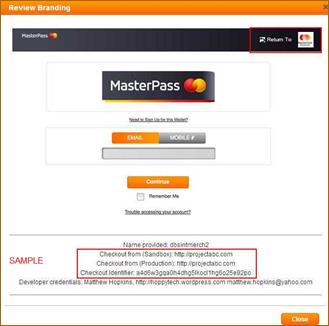

After reviewing these branding elements and closing the modal window, the user will be presented with the option to either Approve or Reject the project. If rejected, a reason must be provided, and the deveoper will be allowed to modify the entry and resubmit.

7. Access Sandbox Credentials, Complete Development and Test-Developer Activity

Access Merchant Sandbox details

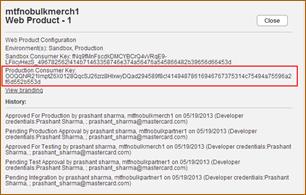

After approval has been granted by the Merchant, the Developer will receive an email notification that changes have been approved. The Developer will sign into the MasterPass Merchant Portal and will note the Sandbox Consumer Key associated with the checkout project. Click the View Branding link to view the Checkout Identifier. Please note MasterPass UI is illustrative only. Please refer to Developer Zone for sample code and SDKs.

(Please note MasterPass UI is illustrative only and is not representative of actual consumer UI). Make a note of the following values as they will be used in the code to integrate with MasterPass web services:

• Consumer Key (97 characters)
• Callback URL ('Checkout from' field in the screen above)
• Checkout Identifier
• Keystore and Keystore Password

8. Request Production Credentials-Developer Activity

Once the application has been tested against sandbox, the Developer will request the Merchant's production credential. This is done by submitting the checkout project created in Step 5 and submitting it again to the merchant for approval.

9. Approve Production Credential Request-Merchant Activity

After the Developer submits request for production credentials, the Merchant will get an email notification. The Merchant will log on to the MasterPass merchant portal, click on Approval Request, review the branding and provide approval (similar to step 6).

10. Deploy application using Production Credentials-Developer Activity

After merchant approval, the developer will receive email containing the merchant's production Consumer Key, production callback URL and the Checkout Identifier. Prior to production deployment, update your code with the MasterPass production endpoint, merchant's production Consumer Key, checkout identifier, production callback URL and the keystore if different than Sandbox. The last step is to deploy your code to production. You're all done!

Note: For more details on the specific configuration parameters, please refer to the FAQ section at https://developer.mastercard.com/portal/display/api/MasterPass+-+Merchant+Checkout+-+FAQs and look for the question, "What are the various parameters I need, to call MasterPass services and where do I get them from?"

Note: Signature base string, request and response samples are available in the Appendix. Sample code for all the steps in the integration process is available on Developer Zone

Lightbox Integration

Lightbox integration is required to launch MasterPass user interface. In order to invoke the Lightbox, merchants will need to include the following scripts on the page they implementing ' Buy with MasterPass' or 'Connect with MasterPass' buttons:

1. https://ajax.googleapis.com/ajax/libs/jquery/1.10.2/jquery.min.js
It is recommended to pull the jQuery file from the public jQuery repository
2. https://www.masterpass.com/lightbox/Switch/integration/MasterPass.client.js

Standard Checkout

The following steps are necessary to integrate a standard MasterPass checkout. For further information, click on each step of the process.

1. Request Token Service
2. Shopping Cart Service
3. Merchant Initialization Service (Optional based on Shopping Cart parameters)
4. Invoke MasterPass UI(Lightbox) for checkout
5. Standard Callback method or Redirect to callback URL
6. Access Token Service
7. Retrieve Payment, Shipping Data, Rewards and 3DS Details
8. Authorize Payment through payment processor
9. Postback Service

Invoke MasterPass UI (Lightbox)

Within a script tag the merchant must invoke the checkoutButton method with the required parameters.

        <script type="text/javascript"
        language="Javascript">
        MasterPass.client.checkout({
        "requestToken":"insert_request_token_here",
        "callbackUrl":"http://www.somemerchant.com/checkoutcomplete.htm",
        "merchantCheckoutId":"insert_checkout_id_here",
        "allowedCardTypes":["master,amex,diners,discover,maestro,visa"],
        "version":"v6"
        });
        </script>


Required parameters are:

• requestToken- The merchants request token from OpenAPI.
• callbackUrl- A URL to redirect the browser to when checkout is complete. Required unless you use the callback method.
• merchantCheckoutId- The merchant's unique checkout id.
• allowedCardTypes - Card types accepted by merchant
• version - checkout version (v6)

Lightbox parameter details can be found here.

Standard Checkout Callback

Once a checkout completes, MasterPass will return context to the merchant. This can be done via:

1. callback URL or
2. A javascript call back method. If you wish to use the callback method, "failureCallback" and "successCallback" parameters must be set when invoking MasterPass Lightbox UI.

1. Redirect to Merchant Callback URL Example

   "http://www.somemerchant.com/checkoutcomplete.htm?status=success&checkout_resource_url=https%3A%2F%2Fstage.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F10189977%3Fwallet%3Dphw&oauth_verifier=6c50838e31b7441e6eafa2229385452889255b13&oauth_token=d6fa60984308aebb6183d44fb9688fb9dc8332dc">www.somemerchant.com/checkoutcomplete.htm?status=success&checkout_resource_url=https%3A%2F%2Fstage.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F10189977%3Fwallet%3Dphw&oauth_verifier=6c50838e31b7441e6eafa2229385452889255b13&oauth_token=d6fa60984308aebb6183d44fb9688fb9dc8332dc

2. Checkout Callback method Example

   function onSuccessfulCheckout(data) {
         document.getElementById('oauthToken').value=data.oauth_token;
         document.getElementById('oauthVerifer').value=data.oauth_verifier;
         document.getElementById('checkoutUrl').value=data.checkout_resource_url;
       }


Pairing with MasterPass Wallet without Checkout

Note: For Pairing to occur, the merchant must have a way of identifying consumers on the merchant site prior to requesting pairing

The following steps are necessary to establish a connection to a consumer's wallet outside of checkout flow. For further information, click on each step of the process. .

1. Authenticate user on merchant site
2. Request Token Service
3. Merchant Initialization Service
4. Invoke MasterPass UI(Lightbox) for Pairing
5. Pairing Callback method or Redirect to callback URL
6. Access Token Service

Invoke MasterPass UI

Consumers can pair their MasterPass wallet with merchant outside of checkout by clicking on the "Connect With MasterPass button." Merchants can display the "Connect with MasterPass" button anywhere on their site except on checkout pages or pages where payment is initiated. to enable pairing without doing a checkout.

Within a script the merchant must invoke the connect method with the required parameters.


<script type="text/javascript"
language="Javascript">
MasterPass.client.connect({
  "pairingRequestToken":"de7647ac630b50f32f5c9addac122614a727ba52f",
  "callbackUrl":"http://www.somemerchant.com/pairingcomplete.htm",
  "merchantCheckoutId":"insert_checkout_id_here",
  "requestedDataTypes":"[REWARD_PROGRAM, ADDRESS, PROFILE, CARD]",
  "requestPairing":true
  "version":"v6"
});
</script>


Required parameters are:

• pairingRequestToken- Request token for pairing
• callbackUrl- A URL to redirect the browser to when connect is complete. Required unless you use the callback method.
• merchantCheckoutId- The merchant's unique checkout id.
• requestedDataTypes- an array of data types the merchant wants paired for. Valid values are CARD, PROFILE, ADDRESS and REWARD_PROGRAM.
• requestPairing- value should be true
• version - checkout version (v6)

Lightbox parameter details can be found here.

Pairing without checkout Callback

Once a pairing flow completes, MasterPass will return context to the merchant. This can be done via a callback URL or a javascript call back method. If you wish to use the callback method, "failureCallback" and "successCallback" parameters must be set when invoking MasterPass Lightbox.

Callback Parameter Details

 http://www.somemerchant.com/pairingcomplete.htm?status=success&pairing_verifier=6c50838e31b7441e6eafa2229385452889255b13&pairing_token=886116426bdb8cd83deed1fbe73df21646016b1f

Pairing Callback method Example

  function onSuccessfulPairing(data) {
        document.getElementById('pairingToken').value=data.pairing_token;
        document.getElementById('pairingVerifer').value=data.pairing_verifier;
      }

Pairing with MasterPass Wallet during Checkout

The following steps are necessary to establish a connection to a consumer's wallet during a checkout. For further information, click on each step of the process:

1. Request Token Service* - to get Checkout request token

2. Request Token Service *- to get pairing request token

3. Shopping Cart Service

4. Merchant Initialization Service (Optional based on Shopping Cart parameters)

5. Invoke MasterPass UI for Standard Checkout with Pairing

6. Pairing Callback method or Redirect to callback URL

7. Access Token Service*- to get Checkout pairing token

8. Access Token Service* - to get long access token

9. Retrieve Payment, Shipping Data, Rewards and 3DS Details

10. Authorize Payment through payment processor

11. Postback Service

*The request token service to get checkout request token and pairing request token is the same service call but needs to be differentiated by the Service Provider.

**The access token service will be called twice, one for long access token (used to retrieve pre-checkout data) and other to retrieve checkout data for current transaction.

Invoke MasterPass UI for Pairing during Checkout

Within a script tag the merchant must invoke the checkout method with the required parameters. Here is an example

  <script type="text/javascript"
  language="Javascript">
  MasterPass.client.checkout({
    "requestToken":"de4847ac630b50f32f5c9ddac122614a727ba52f",
    "callbackUrl":"http://www.somemerchant.com/checkoutcomplete.htm",
    "pairingRequestToken":"de7647ac630b50f32f5c9addac122614a727ba52f",
    "requestedDataTypes":"[REWARD_PROGRAM, ADDRESS, PROFILE, CARD]",
    "merchantCheckoutId":"a4d6x6r6zhak9hvkkkl091hvofxxmat4y",
    "allowedCardTypes":["master", "amex","discover"],
    "requestPairing":true
    "version":"v6"
  });
  </script>

Required parameters are:

• requestToken- Request token used to get checkout access token.
• callbackUrl- A URL to redirect the browser to when checkout is complete. Required unless you use the callback method.
• pairingRequestToken - Request token used to get long access token
• requestedDataTypes- an array of data types the merchant wants paired for. Valid values are CARD, PROFILE, ADDRESS and REWARD_PROGRAM. PROFILE and CARD are mandatory.
• merchantCheckoutId- The merchant's unique checkout id.
• allowedCardTypes - Card types accepted by merchant
• requestPairing- value should be true.
• version - checkout version (v6)

Lightbox parameter details can be found here.

Pairing during Checkout

Once a checkout and pairing completes, MasterPass will return context to the merchant. This can be done via a callback URL or a javascript call back method. If you wish to use the callback method, "failureCallback" and "successCallback" parameters must be set when invoking MasterPass Lightbox.

Redirect to Merchant Callback URL Example

http://www.somemerchant.com/checkoutcomplete.htm?status=success&checkout_resource_url=https%3A%2F%2Fstage.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F10706241%3Fwallet%3Dphw&oauth_verifier=fbe45bcad30299c93765b1fb4b45bab208f84458&oauth_token=d9382e34e0721a68a9952110cecdf89517e45498&pairing_verifier=6c50838e31b7441e6eafa2229385452889255b13&pairing_token=35b2a0cf87f8160fcb5d24996a12edb7cce4c530

Pairing during Checkout Callback method Example


function onSuccessfulCheckout(data) {
  document.getElementById('oauthToken').value=data.oauth_token;
  document.getElementById('oauthVerifer').value=data.oauth_verifier;
  document.getElementById('checkoutUrl').value=data.checkout_resource_url;
  document.getElementById('pairingToken').value=data.pairing_token;
  document.getElementById('pairingVerifer').value=data.pairing_verifier;
}


Return Checkout (Checkout after Wallet Pairing)

The following steps are necessary to integrate a connected checkout flow. For further information, click on each step of the process..

1. Consumer logs onto Merchant site/app
2. Pre-Checkout Data Service
3. Consumer makes card / shipping address selection and clicks on 'Buy with MasterPass'
4. Request Token Service
5. Shopping Cart Service
6. Merchant Initialization Service (Optional based on Shopping Cart parameters).
7. Invoke MasterPass UI for Connected Checkout
8. Callback method or Redirect to callback URL
9. Access Token Service (Checkout)
10. Retrieve Payment, Shipping Data, Rewards and 3DS Details
11. Authorize Payment through payment processor.
12. Postback Service

Invoke MasterPass UI for Connected Checkout

Connected checkout can be used after a user has paired their wallet. The merchant will pass in selections based on the precheckout data for a streamlined checkout experience.

Within a script tag the merchant must invoke the checkout method with the required parameters.


<script type="text/javascript"
language="Javascript">
MasterPass.client.checkoutButton({
  "requestToken":"insert_request_token_here",
  "callbackUrl":"http://www.somemerchant.com/checkoutcomplete.htm",
  "merchantCheckoutId":"insert_checkout_id_here",
  "cardId":" insert_card_id_here ",
  "shippingId":"insert_shipping_address_id_here",
  "precheckoutTransactionId":"insert_prechechout_txn_id_here",
  "walletName":"insert_wallet_name_here",
  "consumerWalletId":"insert_consumer_walletid_here",

  "version":"v6"
});
</script>

Required parameters are:

• requestToken- The merchants request token from OpenAPI.
• callbackUrl- A URL to redirect the browser to when checkout is complete. This URL should match the domain specified when creating the checkout project. Required unless you use the callback method.
• merchantCheckoutId- The merchant's unique checkout id.
• cardId- The id of the card the consumer selected
• shippingId- The id of the shipping address the user selected
• precheckoutTransactionId - Pre checkout transaction ID from precheckout xml
• walletName - Wallet Name from precheckout xml
• consumerwalletId - Consumer Wallet ID id from precheckout xml
• version - checkout version (v6)

Lightbox parameter details can be found here

Connected Checkout Callback

Once a checkout completes, MasterPass will return context to the merchant. This can be done via a callback URL or a javascript call back method. If you wish to use the callback method, "failureCallback" and "successCallback" parameters must be set when invoking MasterPass Lightbox. Here are the examples

Redirect to Merchant Callback URL Example

http://www.somemerchant.com/checkoutcomplete.htm?status=success&checkout_resource_url=https%3A%2F%2Fstage.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F10706241%3Fwallet%3Dphw&oauth_verifier=fbe45bcad30299c93765b1fb4b45bab208f84458&oauth_token=d9382e34e0721a68a9952110cecdf89517e45498


Callback method Example

function onSuccessfulCheckout(data) {
  document.getElementById('oauthToken').value=data.oauth_token;
  document.getElementById('oauthVerifer').value=data.oauth_verifier;
  document.getElementById('checkoutUrl').value=data.checkout_resource_url;
}

Service Descriptions:

Request Token Service

This should be executed when a consumer clicks "Buy with MasterPass" button or "Connect with MasterPass" button on the merchant's site/app.

For Pairing during checkout, this service will need to be called twice:

• once to exchange for a Long Access Token which is used to retrieve precheckout data and
• once to exchange for an Access Token which can be used to retrieve checkout data

Request and response parameter details can be found here

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/oauth/consumer/v1/request_token

https://api.mastercard.com/oauth/consumer/v1/request_token

Shopping Cart Service

Merchants must call the Shopping Cart service before invoking the MasterPass UI for checkout. This enables shopping cart data to be displayed to users as they proceed through the MasterPass login and checkout.

Shopping cart request has an optional OriginUrl field, if the merchant sets this, it will remove the need to call the merchant initialization service before displaying the Lightbox. Request and response parameter details can be found here

Note: The product description needs to be HTML encoded.

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/masterpass/v6/shopping-cart

https://api.mastercard.com/masterpass/v6/shopping-cart

Merchant Initialization Service

This service is used to secure Lightbox connections between merchant and MasterPass This service requires a request token (OAuthToken). This service call should be used when shopping cart service is not called e.g. pairing outside of checkout flow.

Request and response parameter details can be found here.

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/masterpass/v6/merchant-initialization

https://api.mastercard.com/masterpass/v6/merchant-initialization

Access Token Service

Next step is to exchange a Request token for an Access token from the MasterPass service. For Pairing during checkout, this service will need to be called twice: once for requesting the checkout access token which is used to retrieve checkout data; and one for requesting the long access token which is used to retrieve pre-checkout data. You will use the Request Token (oauth_token) and Verifier (oauth_verifier) from the merchant callback to get an access token. Request and response parameter details can be found here.

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/oauth/consumer/v1/access_token

https://api.mastercard.com/oauth/consumer/v1/access_token

Pre-Checkout Data Service

MasterPass provides merchants with the ability to request a paired consumer's data (card alias, shipping addresses, loyalty program, and profile information) prior to the actual MasterPass checkout. This gives the merchant the ability to provide the consumer the opportunity to pre-select their checkout options before completing the checkout.

If for any reason the precheckout call gets rejected at MasterPass (merchant requests data that the consumer did not originally consent to, if the pairing has been deleted by the user, if the Long Access token has expired, etc.) the merchant has to request pairing again.

Note: This is not required for standard checkout.

Request and response parameter details can be found here.

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/masterpass/v6/precheckout

https://api.mastercard.com/masterpass/v6/precheckout

Retrieve Payment, Shipping Data, Rewards and 3DS Details

Now you will use the Checkout Resource URL request parameter (checkout_resource_url) received from the callback URL to retrieve consumer's payment, shipping address, reward and 3DS information from MasterPass. Request and response parameter details can be found here.

Please note that MasterPass performs a CVC/CVV check at card enrollment. However, in accordance with PCI standards, CVC2/CVV2 data is not persisted, and will not be provided to the merchant. As the card data has been validated and securely stored by MasterPass, merchants must not require CVC/CVV entry from a consumer checking out with MasterPass.

Note: In cases where, prior to submitting their order, the cardholder chooses to replace the payment details provided by MasterPass with different, manually entered payment details, Merchants should ask the cardholder to enter CVV2/CVC2/CID as they would in the normal course and should not pass the wallet indicator flag to the acquirer. In this case, the transaction is no longer considered to be a MasterPass transaction. Checkout Postback is still required. It is recommended not to allow consumers to change their card details after returning from MasterPass.

In accordance with MasterCard bulletin Global 550-Identification of PayPass Transactions, a 3 byte wallet Indicator Flag (WalletID xml element in the checkout xml will be part of the output returned by this request. This value must be passed to your acquiring bank, and will indicate that the customer's payment details were provided by the MasterPass service, rather than being manually entered. You many need to work with your payment provider (acquirer, payment gateway, etc.) to understand how best to handle this data element. In the event, your acquirer has not completed implementation of this bulletin, your transactions will continue to process as-is. Please contact your MasterCard representative to get the bulletin.

This project created the following new message elements in Dual Message Authorization, Dual Message Clearing, and the Single Message System to carry this identifier:

• Dual Message System (Authorization)-Data element (DE) 48 (Additional Data-Private Data), sub element 26 (Wallet Program Data), subfield 1 (Wallet Identifier)
• Dual Message System (Clearing)-PDS 0207 (Wallet Identifier)
• Single Message System-DE 48 (Additional Data), sub element 26 (Wallet Program Data), subfield 1 (Wallet Identifier)

Postback

Note: This is a mandatory step.

The final step of a MasterPass transaction is a service call from the service provider to MasterPass, communicating the result of the transaction (success or failure). Abandoned transactions do not need to be reported. Please note that the <TransactionId> value should be the value from the <TransactionId> element of the Checkout XML returned in the Checkout request.

Request and response parameter details can be found here.

The following fields are passed in the postback service call:

ConsumerKey: Consumer key from checkout project

Currency: Currency for the transaction e.g. USD

OrderAmount: Transaction Order Amount e.g., 1500 (for $15 transaction amount)

PurchaseDate: Date of Purchase

ApprovalCode: 6-digit approval code returned by payment API.

TransactionId: Transaction ID from TransactionId element of the Checkout XML from the retrieve payment, shipping, rewards and 3DS data service call for example, "35201"

TransactionStatus: Status of transaction. Valid values are

• SUCCESS: For approved transaction
• FAILURE: For declined transaction

PreCheckoutTransactionId: Comes from PrecheckoutTransactionId element of the PrecheckoutData XML. (This is not required for Standard Checkout)

Sandbox and Production Endpoints

https://sandbox.api.mastercard.com/masterpass/v6/transaction

https://api.mastercard.com/masterpass/v6/transaction

Android and iOS App Integration

Your Android or iOS application should invoke a backend service to initiate the OAuth authorization. On the native application side, most of the work involves connecting to your backend services.

The basic process is as follows:

1. Perform a POST to ${server}/appToWallet/initialize with the shopping cart data in the POST message
1. The server will request the Request Token, post the shopping cart data to MasterPass services and generate the Redirect URL.
2. The server will pass the Redirect URL and the Callback URL back to the mobile application.
2. On a 2response, save the Callback URL, and use the user Redirect URL to open a Web View
3. Watch the Web View for navigation to the Callback URL.
4. On navigation to the Callback URL,
1. If the query parameter section of the Callback URL only contains the oauth_token, the user did not complete selection in MasterPass. Return the user to the cart view, or wherever your particular requirements dictate.
2. If the query parameter of the Callback URL section contains information, parse out the oauth_token, oauth_verifier, and checkout_resource parameter values, perform a string replacement on the checkout_resource value to replace '/with '.and use these to perform a GET to${server}/appToWallet/checkoutInformation/${oauth_token}/${oauth_verifier}/${checkout_resource}
3. Note: Do not send the full PAN to the mobile device. This information should be stored on the server similarly to the server/browser implementation.
5. On a 2response, use the returned information to produce a summary view for the user to give final approval to the transaction (pursuant to your specific requirements.)
6. After the consumer completes the transaction, the server should submit postback to MasterPass.

Displaying "Buy with MasterPass" Button and Acceptance Marks

The MasterPass acceptance mark and checkout button image URLs can be found below. To ensure the best consumer experience, the checkout button should be placed at the beginning of the checkout experience, prior to the collection of shipping and billing information.

To minimize the impact of future branding updates, please use the country specific link to the images on the checkout page rather than downloading them and hosting the images locally. In order to successfully integrate with MasterPass and enable successful checkout by an end-user consumer via the service, the 'Buy with MasterPass' checkout button must be integrated on the merchant website and displayed as noted in the MasterPass Branding Requirements document available on MasterCard developer zone.

The URL naming convention uses the base URL, Language Code (ISO 639-1), Country Code (ISO 3166-and Button as shown below: Base URL/Language/Country/Image File Name

Base URL: https://www.mastercard.com/mc_us/wallet/img/

Note: The list of language/country folders can be found at https://developer.mastercard.com/portal/display/api/MasterPass+-+Merchant+Checkout+-+FAQs under the question, "Which countries and locales are currently supported to link 'Buy with MasterPass' images?"

Buy with MasterPass button Example:

Below is an example of how a Merchant can include the checkout button.

        <div "MasterPassBtnExample">
        <a href="/exampleRedirect">
          <imgsrc="https://www.mastercard.com/mc_us/wallet/img/en/US/mcpp_wllt_btn_chk_147x034px.png"
          alt="Checkout with MasterPass Button Example" />
        </a>
        </div>


MasterPass Checkout Images

PNG Checkout Buttons

/mcpp_wllt_btn_chk_147x034px.png

/mcpp_wllt_btn_chk_160x037px.png

/mcpp_wllt_btn_chk_166x038px.png

/mcpp_wllt_btn_chk_180x042px.png

GIF Checkout Buttons

/mcpp_wllt_btn_chk_147x034px.gif
/mcpp_wllt_btn_chk_160x037px.gif
/mcpp_wllt_btn_chk_166x038px.gif
/mcpp_wllt_btn_chk_180x042px.gif

GIF Acceptance Marks

/mp_mc_acc_023px_gif.gif
/mp_mc_acc_030px_gif.gif
/mp_mc_acc_034px_gif.gif
/mp_mc_acc_038px_gif.gif
/mp_mc_acc_050px_gif.gif
/mp_mc_acc_065px_gif.gif
/mp_mc_acc_113px_gif.gif

PNG Checkout Buttons - High Resolution

/mcpp_wllt_btn_chk_290x068px.png

/mcpp_wllt_btn_chk_317x074px.png

/mcpp_wllt_btn_chk_326x076px.png

/mcpp_wllt_btn_chk_360x084px.png

GIF Checkout Buttons - High Resolution

/mcpp_wllt_btn_chk_290x068px.gif

/mcpp_wllt_btn_chk_317x074px.gif

/mcpp_wllt_btn_chk_326x076px.gif

/mcpp_wllt_btn_chk_360x084px.gif

GIF Acceptance Marks - High Resolution

/mp_acc_046px_gif.gif

/mp_acc_060px_gif.gif

/mp_acc_068px_gif.gif

/mp_acc_076px_gif.gif

//mp_acc_100px_gif.gif

/mp_acc_130px_gif.gif

/mp_acc_226px_gif.gif

Here are a few examples

US English URL:
https://www.mastercard.com/mc_us/wallet/img/en/US/mcpp_wllt_btn_chk_147x034px.png

Canada French URL:
https://www.mastercard.com/mc_us/wallet/img/fr/CA/mcpp_wllt_btn_chk_147x034px.png

Displaying "Connect with MasterPass" Button

This button is used to initiate Pairing outside of a checkout.

The MasterPass connect button image URLs can be found below.

To minimize the impact of future branding updates, please use the country specific link to the images on the checkout page rather than downloading them and hosting the images locally. In order to successfully integrate with MasterPass and enable successful connection by an end-user consumer via the service, the "Connect with MasterPass" button must be integrated on the merchant website and displayed as noted in the MasterPass Branding Requirements document available on MasterCard developer zone.

The URL naming convention uses the base URL, Language Code (ISO 639-1), Country Code (ISO 3166-and Button as shown below: Base URL/Language/Country/Image File Name

Base URL: https://www.mastercard.com/mc_us/wallet/img/.

Here are a few examples

US English URL - Connect with MasterPass Button:

https://www.mastercard.com/mc_us/wallet/img/en/US/mp_connect_with_button_126px.png

Canada French URL - Connect Button:
https://www.mastercard.com/mc_us/wallet/img/fr/CA/mp_connect_with_button_034px.png

Note: The list of language/country folders can be found at https://developer.mastercard.com/portal/display/api/MasterPass+-+Merchant+Checkout+-+FAQs under the question, "Which countries and locales are currently supported to link 'Connect with MasterPass' images?"

Connect with MasterPass button Example:

Below is an example of how a Merchant can include the Connect with MasterPass button.

        <div "MasterPassConnectBtnExample">
        <a href="/exampleRedirect">
        <img src="https://www.masterpass.com/lightbox/Switch/integration/MasterPass.connect.png"alt="Connect with MasterPass Button Example" />
        </a>
        </div>


Connect with MasterPass Images

PNG Connect with Buttons

/mp_connect_with_button_034px.png

/mp_connect_with_button_037px.png

/mp_connect_with_button_038px.png

/mp_connect_with_button_042px.png

/mp_connect_with_button_068px.png

/mp_connect_with_button_074px.png

/mp_connect_with_button_126px.png

MasterPass "Learn More" Page

In addition to the MasterPass checkout button and acceptance mark, MasterPass also requires merchants to provide a link to "Learn More" page which can be used by the consumers to get additional information about MasterPass. It is recommended that you place the link in close proximity to the "Buy with MasterPass" button.

"Learn More" page is available in multiple languages and can be accessed from the following link. For the list of all available languages, please refer to FAQs on developer zone

English - http://www.mastercard.com/mc_us/wallet/learnmore/en

Swedish - http://www.mastercard.com/mc_us/wallet/learnmore/se

French - http://www.mastercard.com/mc_us/wallet/learnmore/fr

Italian - http://www.mastercard.com/mc_us/wallet/learnmore/it

Spanish - http://www.mastercard.com/mc_us/wallet/learnmore/es

Please refer to the FAQs for a list of all available countries at https://developer.mastercard.com/portal/display/api/MasterPass+-+Merchant+Checkout+-+FAQs under the question, "Which languages are currently available for use with the MasterPass 'Learn More' page?"

MasterPass Sandbox Testing

In order to access the necessary information to test in the sandbox environment, you must submit an approval request to the merchant as explained earlier in the guide. Testing can be conducted in the sandbox environment, using the test consumer account. Your code must gracefully handle the error states and scenarios listed below.

Note: You cannot add cards to a sandbox account. Only shipping addresses can be added to sandbox accounts.

Consumer Account (Sandbox) Do not modify this shared account
Test Account 1
Login Email	Joe.test@email.com	Password	abc123
Answer to Security Question	Pets Name: fido
Test Account 2
Login Email	Joe.test3@email.com	Password	abc123
Answer to Security Question	Pets Name: fido

Use the "remember me" and "remember this device" options when testing so that you don't have to rekey the entire test account information every time you login to MasterPass.

Once you are redirected to the sandbox environment, select MasterPass wallet to sign-in to Sandbox Consumer Wallet Account.

(Select) MasterPass Wallet

Sign-in & Verify Your ID (Login email for Sandbox)

Select Payment & Shipping

Q/A Checklist

Asset Placement

• Verify your adherence to the MasterPass Branding Requirements document.
• Verify that you are linking to (versus hosting your own) MasterPass visual assets.

In-Wallet Experience

• Verify that the consumer can only select card/addresses/rewards that are supported by the merchant
• Verify shopping cart information is sent to MasterPass and is displayed.

Post Wallet Experience

• After clicking the "Finish Shopping" button, verify the consumer is taken to a valid page.
• Verify that MasterPass acceptance mark is displayed for all MasterPass transactions
• Verify that MasterPass and issuer logo are displayed with pre-checkout data (for connected checkout)
• It's recommended to not allow consumers to edit the payment information returned by MasterPass.
• Verify that your code gracefully handles consumers returning without selecting a card and address (as a result of user choice or login failure)
• Verify that your code handles the return of a consumer with an expired request token. Note: The Request Token is valid for 15 minutes therefore if the process is not completed within the timeout, the request token will expire and the checkout will need to be restarted.
• Verify that your code is able to parse and ingest the returned data
• Verify that any post-Wallet page has a clear call to action (e.g. select preferred shipping method), versus simply having the consumer review the data they just selected in the Wallet
• Verify that consumer is not required to enter CVC/CVV in order to complete the transaction
• Verify that non-PCI compliant merchants do not receive the card PAN
• Verify that if merchants are provided with the PAN, this value is not displayed on-screen

Postback

• Verify that the transaction id submitted as part of a postback was sourced from the associated MasterPass transaction
• Verify that the transaction result (Postback) is reported immediately after card authorization

Connected Checkout Experience

• Verify that consumer is logged into Merchant site before offering Connected Checkout
• For Pairing, you must request at least Card and Profile data elements
• If precheckout call gets rejected by MasterPass (merchant requests data that the consumer did not originally consent to, if the pairing has been deleted by the user, if the Long Access token has expired, etc.) the merchant has to request pairing again.
• Verify that pairing is offered during checkout or outside of checkout (e.g. account management)

Troubleshooting

If you get "Error 400" when calling MasterPass web services

• Verify Authorization header is not missing from the request
• Verify Authorization header has the following:
• Signature
• Consumer Key (exists and correct length)
• Nonce
• Signature Method
• Timestamp
• Callback URL (Request Token call only)
• oauth_verifier (Access Token call only)
• oauth_token (Access Token call only)

If you get "Error 401" when calling MasterPass web services

• Verify that you are passing the Access Token in the get CheckoutXML call.

If you get "Error 403 - Forbidden" when calling MasterPass services

• Verify correct credentials or correct environment (i.e., sandbox credentials with the prod URL)
• Verify timestamp

If you get "Error 500" when calling MasterPass web services

• Verify oauth_body_hash exists and is correct (Post Transaction call only)
• Verify Content-Type HTTP header is being sent
• Verify correct private key
• Verify signature is readable (example, encoded incorrectly)

Support

Please refer to the FAQs at https://developer.mastercard.com/portal/display/api/MasterPass+-+Merchant+Checkout+-+FAQs.

If you have any questions or comments relating to MasterPass integration, please contact us at merchant_support@masterpass.com.

Lightbox Parameters

Lightbox Parameters invoked with the checkout button or Connect with MasterPass button.

O = Optional; R = Required; A = Automatically populated

Parameter name	Data type	Card security	Checkout	Connect	Description
allowedCardTypes	string[]		O		This parameter restricts the payment methods that may be selected based on card brand. Omit this parameter to allow all payment methods. Here are the valid values for different card types MasterCard: master Maestro: maestro American Express: amex Discover: discover Diners: diners Visa: visa
loyaltyEnabled	bool		O		This parameter defines if the merchant is requesting consumer's loyalty details from MasterPass for the transaction. Valid values are True or False.
shippingLocationProfile	string[]		O		This parameter defines Merchant's Shipping Profile(s) for that they set in their account.
callbackUrl	string	O	O	O	This defines the base URL to which the browser is redirected to upon successful or failed completion of the flow if there is no appropriate callback function available.
cardId	string		O		Required for connected checkout. Set to a valid payment card ID.
failureCallback	function	O	O	O	This defines the function to be called when the flow ends in failure. Refer SDK for more examples
loyaltyId	string		O		Optional for connected checkout. Set to a valid loyalty card ID.
merchantCheckoutId	string	R	R	R	This is the checkout identifier which is used to identify the merchant and their checkout branding.
precheckoutTransactionId	string	R			Helps the wallet identify the wallet account for which precheckout data is provided. MasterPass includes this parameter in the checkout xml for connected checkout
requestBasicCheckout	bool		O		Set to "true" to disable step-up authentication (advanced checkout) during any checkout flow. The default is "false".
requestedDataTypes	string[]		O	R	This indicates the types of data being requested for pairing. Possible values include "PROFILE", "CARD", "ADDRESS", and "REWARD_PROGRAM". "PROFILE" and "CARD" are mandatory data types. Refer to precheckout data xml to get details of these data types. Refer to precheckout data xml to get details of these data types. This parameter is required when requestPairing is "true".
requestPairing	bool		O	A	This indicates that the user is being asked to enable connected checkout. It is automatically set to "true" for the "Connect" flow. The default for other flows is "false".
requestToken	string	R	R	R	This is an OAuth token.
pairingRequestToken	string		O	R	This is an OAuth token.
suppressShippingAddressEnable	Bool		O		When set to "True" shipping address screen is not displayed to consumer. When set to "false", shipping address are displayed and consumer can select.
shippingId	string		O		Optional for connected checkout. Set to a valid shipping destination ID.
walletName	string			R	Required for connected checkout to uniquely identify wallet name
consumerWalletId	string			R	Required for connected checkout to uniquely identify consumer
successCallback	function	O	O	O	This defines the function to be called when the flow ends in success.

OAuth Samples

Request Token

Request Parameters

	request_token Request	request_token Response
oauth_callback	X
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
realm	X
oauth_token		X
oauth_callback_confirmed		X
oauth_expires_in		X
oauth_token_secret		X
xoauth_request_auth_url		X

Request Parameter Details

Request Token-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_callback	Endpoint that will handle the transition from the wallet site to the merchant checkout page	Variable
	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	oAuth version	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oAuth signature method.	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	realm	Used to differentiate between our mobile and full site. Currently not used.	eWallet
Request Token-Response		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Request Token	oauth_callback_confirmed		Variable
	oauth_expires_in	Time the Request Token expires in seconds	Variable
	oauth_token_secret	Oauth Secret	Variable
	xoauth_request_auth_url	Authorize URL	Variable

Signature Base String Example

  POST&https%3A%2F%2Fsandbox.api.mastercard.com%2Foauth%2Fconsumer%2Fv1%2Frequest_token&oauth_callback%3Dhttp%253A%252F%252Fprojectabc.com%252Fmerchant%252FCallback.jsp%26oauth_consumer_key%3DZGho8Df8vqW-IpGCIu559HYriL093IBXdJeKavp4dce9db2a%25216464586653467358724b616c74475445443349466a413d3d%26oauth_nonce%3D1143452272881219%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1339612030%26oauth_version%3D1.0

HTTP Request Example

POST /oauth/consumer/v1/request_token HTTP/1.1Authorization: OAuth
  oauth_callback="http%3A%2F%2Fprojectabc.com%2Fmerchant%2FCallback.jsp",oauth_signature="pzNogGtgShe16%2FwhP4CsTRXkgJ1mv%2FKm6do5ZVi6doKzAJZ0m8QqhiERi5lRuphdyUkhW8LKdUL1TetPdxm32Vtr%2BQGF6n6IBjr8dGcyYmfaLyAYVhF%2Fx5oQhUDVpdXIc10dJ0miUwZPbJ1QopN3ibeOzvgNxhEiHYKVnpvYEhc%3D",oauth_version="1.0",oauth_nonce="1143452272881219",oauth_signature_method="RSA-SHA1",oauth_consumer_key="ZGho8Df8vqW-IpGCIu559HYriL093IBXdJeKavp4dce9db2a%216464586653467358724b616c74475445443349466a413d3d",oauth_timestamp="1339612030",realm="eWallet"

HTTP Response Example

  oauth_callback_confirmed=true&oauth_expires_in=900&oauth_token=a02c5c5c1a128c2cebc650ea9aa3dfb7&oauth_token_secret=c2daaf0888779d82bd63524159bee91f&xoauth_request_auth_url=https%3A%2F%2Fsandbox.masterpass.com%2Fonline%2FCheckout%2FAuthorize

Merchant Initialization Service

Merchant Initialization Parameters

	Merchant Initialization resource Request	Merchant Initialization Resource Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
realm	X
oauth_body_hash	X
oauth_token	X
Merchant Initialization		X

Merchant Initialization Request Parameter Details

Merchant Initialization Resource-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version.	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method.	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	oauth_token	Request token	Variable
	Merchant_Initialization _origin_url	URL of the page that will initialize the Lightbox
Merchant Initialization Resource-Response		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the request	Variable
PreCheckout TransactionID	PreCheckout TransactionID	PreCheckoutTransactionID sent in the request only for Connected checkout.	Variable

Signature Base String Example

  POST&https%3A%2F%2Fsandbox.api.mastercard.com%2Fmasterpass%2Fv6%merchantinitialization&oauth_body_hash%3D8K9uhveZjVdZW8AIYiXpR70KCtk%253D%26oauth_consumer_key%3DcLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%2521414f4859446c4a366c726a327474695545332b353049303d%26oauth_nonce%3DDEAEB1CD-CA03-405D-A7B4-B4263CB5A305%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1380049711%26oauth_version%3D1.0

HTTP Request Example

POST /masterpass/v6/merchant-initialization HTTP/1.1Authorization: OAuth
  realm="eWallet",oauth_consumer_key="cLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%21414f4859446c4a366c726a327474695545332b353049303d",oauth_signature_method="RSA-SHA1",oauth_nonce="DEAEB1CD-CA03-405D-A7B4-B4263CB5A305",oauth_timestamp="1380049711",oauth_version="1.0",oauth_body_hash="8K9uhveZjVdZW8AIYiXpR70KCtk%3D",oauth_signature="IdV4%2FREyJ7nAXK%2FYvuJ2BtO4C8t6PlW8xTrDob0WzWJ5%2FRBOPDj534Sm7oPdojivWTGOLAcZq3kbVF6rwrsjGFWlNJITXt3HT3zravb02oqTrVQH3Zlx5fi4o0u2xxqrDwHZvbhjPgwByBRmE%2FoTw2l9H%2FznSn45xcS1eJPa%2FGI%3D"
  XML

V6/merchant-initialization -XML Schema Request

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="MerchantInitializationRequest" type="MerchantInitializationRequest" />
  <xs:complexType name="MerchantInitializationRequest">
    <xs:sequence>
      <xs:element name="OAuthToken" type="xs:string" />
      <xs:element name="PreCheckoutTransactionId" type="xs:string" maxOccurs="1" minOccurs="0" />
      <xs:element name="OriginUrl" type="xs:string" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
      <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any" />
    </xs:sequence>
    <xs:anyAttribute />
  </xs:complexType>
</xs:schema>


URL: https://api.mastercard.com/masterpass/v6/merchant-initialization - Sample Request

<MerchantInitializationRequest>
  <OAuthToken>297d0203c3434be0400d8a755a62b65500e944b9</OAuthToken>
  <OriginUrl>https://somemerchant.com</OriginUrl>
</MerchantInitializationRequest>

V6/merchant-initialization -XML Schema Response

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="MerchantInitializationResponse" type="MerchantInitializationResponse"/>
    <xs:complexType name="MerchantInitializationResponse">
        <xs:sequence>
            <xs:element name="OAuthToken" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any" />
        </xs:sequence>
        <xs:anyAttribute />
    </xs:complexType>
</xs:schema>

V6/ MerchantInitialization -Sample Response

<MerchantInitializationResponse>
  <OAuthToken>4c7b34cc63a68282bba77a4b34f0192fcb2268fb</OAuthToken>
</MerchantInitializationResponse>

V6 - MerchantInitializationRequest XML Details

MerchantInitializationRequest XML	Element	Description	Type	Min-Max
	MerchantInitializationRequest	Root Element	XML	-
MerchantInitializationRequest	OAuthToken	Request Token (oauth_token) returned by call to the request_token API		-
	PreCheckoutTransactionID	Identifies pre-checkout transaction. Returned from get pre-checkout data call; Optional	string	NA
	OriginUrl	Identifies the URL of the page that will initialize the Lightbox.	string	NA
	ExtensionPoint	Reserved for future enhancement. Optional	Any
MerchantInitializationResponse XML	Element	Description	Type	Min-Max
	OAuthToken	Request Token (oauth_token) returned by call to the request_token API	XML	-
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-

ExtensionPoint Elements

Starting with API v6, all schema container elements contain a new optional element named "ExtensionPoint". These elements are intended to provide expandability of the API without requiring a new major version. These elements are defined to contain a sequence of "xs:any", meaning that any XML content can be contained within the element. In order to ensure future expandability, all integrators must not perform any validation of elements received inside an ExtensionPoint element, beyond any that may be defined by MasterPass in the future with a separate schema. Any such extensions will be optional. Further, only authorized schemas will be allowed inside ExtensionPoint elements, and any unknown elements will be dropped by MasterPass.

ExtensionPoint - Sample

<ExtensionPoint>
  <s:SampleExtension xmlns:s=”https://www.masterpass.com/location/of/example/ns”>
    <s:SampleField>Sample Value</s:SampleField>
  </s:SampleExtension>
  <f:AnotherExampleExtension xmlns:f=”https://www.masterpass.com/location/of/example2/ns>
    <f:SampleContainer>
      <f:AnotherSampleField>Sample Value</f:AnotherSampleField>
    </f:SampleContainer>
  </f:AnotherExampleExtension>
</ExtensionPoint>


Shopping Cart Service

Shopping Cart Parameters

	Shopping Cart Request	Shopping Cart Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
oauth_body_hash	X
oauth_token	X	X
Shopping Cart Request XML	X
Shopping Cart Response XML		X

Shopping Cart Parameter Details

Shopping Cart-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	oauth_body_hash	SHA1 hash of the message body	Variable
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Transfer XML Strings	Shopping Cart Request XML	Merchant Shopping Cart details
Shopping Cart-Response		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Transfer XML Strings	Shopping Cart Response XML

Signature Base String Example

  POST&https%3A%2F%2Fsandbox.api.mastercard.com%2Fmasterpass%2Fv6%2Fshopping-cart
  &oauth_body_hash%3D8K9uhveZjVdZW8AIYiXpR70KCtk%253D%26oauth_consumer_key%3DcLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%2521414f4859446c4a366c726a327474695545332b353049303d%26oauth_nonce%3DDEAEB1CD-CA03-405D-A7B4-B4263CB5A305%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1380049711%26oauth_version%3D1.0

HTTP Request Example

POST /masterpass/v6/shopping-cart HTTP/1.1 Authorization: OAuth
  realm="eWallet",oauth_consumer_key="cLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%21414f4859446c4a366c726a327474695545332b353049303d",oauth_signature_method="RSA-SHA1",oauth_nonce="DEAEB1CD-CA03-405D-A7B4-B4263CB5A305",oauth_timestamp="1380049711",oauth_version="1.0",oauth_body_hash="8K9uhveZjVdZW8AIYiXpR70KCtk%3D",oauth_signature="IdV4%2FREyJ7nAXK%2FYvuJ2BtO4C8t6PlW8xTrDob0WzWJ5%2FRBOPDj534Sm7oPdojivWTGOLAcZq3kbVF6rwrsjGFWlNJITXt3HT3zravb02oqTrVQH3Zlx5fi4o0u2xxqrDwHZvbhjPgwByBRmE%2FoTw2l9H%2FznSn45xcS1eJPa%2FGI%3D"

Shopping Cart V6-XML Schema

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="ShoppingCartRequest" type="ShoppingCartRequest" />
  <xs:complexType name="ShoppingCartRequest">
    <xs:sequence>
      <xs:element name="OAuthToken" type="xs:string" />
      <xs:element name="ShoppingCart" type="ShoppingCart" />
                      <xs:element name="OriginUrl" type="xs:string" minOccurs="0" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ShoppingCart">
    <xs:sequence>
    <!-- CurrencyCode is defined by ISO 4217 to be exactly three characters, such as, USD for US Dollars. All Monetary Values will be modified by the CurrencyCode. For example a Monetary Value of 11900 combined with a CurrencyCode of USD will be handled at $119.00. -->
      <xs:element name="CurrencyCode" type="xs:string" />
      <xs:element name="Subtotal" type="xs:long" />
      <xs:element name="ShoppingCartItem" type="ShoppingCartItem" minOccurs="0" maxOccurs="unbounded" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ShoppingCartItem">
    <xs:sequence>
      <xs:element name="Description" type="xs:string" />
      <xs:element name="Quantity" type="xs:long" />
      <xs:element name="Value" type="xs:long" />
      <xs:element name="ImageURL" type="xs:string" minOccurs="0" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
      <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any" />
    </xs:sequence>
    <xs:anyAttribute/>
  </xs:complexType>
</xs:schema>


Shopping Cart V6 XML Details

ShoppingCartRequest	Element	Description	Type	Min-Max
	OAuthToken	Request Token (oauth_token) returned by call to the request_token API	String	Variable
	ShoppingCart	Merchant Shopping Cart details.	XML	-
	OriginUrl	Identifies the URL of the page that will initialize the lightbox.	String	Variable
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
ShoppingCart	CurrencyCode	Defined by ISO 4217 to be exactly three characters, such as, USD for US Dollars. All MonetaryValues will be modified by the CurrencyCode	Alpha	3
	Subtotal	Total sum of all the items in the cart excluding shipping, handling and tax. Integer without the decimal e.g. $119.00 USD will be 11900.	Integer	1-12
	ShoppingCartItem	Details of a single shopping cart item.	XML	-
ShoppingCartItem	Description	Describes a single shopping cart item.	String	1-100
	Quantity	Number of a single shopping cart item.	Integer	1-12
	Value	Price or monetary value of a single shopping cart item. Cost * Quantity. Integer without decimal e.g., $100.00 is 10000.	Integer	1-12
	ImageURL	Link to shopping cart item image. URLs must be HTTPS, and not HTTP.	String	0-2000
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
ShoppingCartResponse	Element	Description	Type	Min- Max
	OAuthToken	Request Token (oauth_token) returned by call to the request_token API	String	Variable
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-

Shopping Cart Request XML-Sample

<?xml version="1.0" ?>
<ShoppingCartRequest>
  <OAuthToken>f7f16d8462a9424365498afade20caaa</OAuthToken>
  <ShoppingCart>
    <CurrencyCode>USD</CurrencyCode>
    <Subtotal>11900</Subtotal>
    <ShoppingCartItem>
      <Description>This is one item</Description>
      <Quantity>1</Quantity>
      <Value>1900</Value>
    </ShoppingCartItem>
    <ShoppingCartItem>
      <Description>Five items</Description>
      <Quantity>5</Quantity>
      <Value>10000</Value>
      <ImageURL>https://somemerchant.com/someimage</ImageURL>
    </ShoppingCartItem>
  </ShoppingCart>
  <OriginUrl>https://somemerchant.com</OriginUrl>
</ShoppingCartRequest>


Shopping Cart Response XML-Sample

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ShoppingCartResponse>
  <OAuthToken>a747f7e7c2e0c3048843f640b92806c8</OAuthToken>
</ShoppingCartResponse>

Shopping Cart-XML Response Schema

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="ShoppingCartResponse" type="ShoppingCartResponse"/>
  <xs:complexType name="ShoppingCartResponse">
    <xs:sequence>
      <xs:element name="OAuthToken" type="xs:string" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
      <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any" />
    </xs:sequence>
    <xs:anyAttribute />
  </xs:complexType>
</xs:schema>

HTTP Response Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ShoppingCartResponse>
  <OAuthToken>93dcec2e58e1bee050301bb2ee7d9331</OAuthToken>
</ShoppingCartResponse>

Redirect & Callback

Redirect & Callback Parameters

	Redirect to MasterPass	Callback from MasterPass
oauth_token	X	X
oauth_verifier		X
checkout_resource_url		X
acceptable_cards	X
checkout_identifier	X
version	X
suppress_shipping_address	X
auth_basic	X
accept_reward_program	X
shipping_location_profile	X

Redirect & Callback Parameter Details

Redirect to MasterPass		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Redirect URL Parameters	acceptable_cards	Comma delimited list of accepted cards.	master, amex, diners, discover, maestro, visa
	checkout_identifier	Checkout identifier generated when creating a checkout project on MasterPass Merchant portal	Variable
	version	Attribute to indicate which Checkout XML version to return.	v5
	suppress_shipping_address	Flag to suppress the shipping options presented to the user. This parameter is optional and will default to false.	true false
	auth_level	Flag to reduce the 3DS authentication from advanced to basic on per transaction basis. Note: the 3DS level must be set to advance on the merchant profile to be reduced to basic with this flag. Possible value = basic. This parameter is optional and only used when 3DS authentication is used.	basic
	accept_reward_program	Optional flag to specify if you want MasterPass to return consumer's reward program	true / false
	shipping_location_profile	ID of shipping location profile	variable
Callback from MasterPass		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Access Token	oauth_verifier	Verifier is returned on the callback and used in the access token request	Variable
	checkout_resource_url	Endpoint used to request the users billing and shipping information from MasterPass	Variable

Redirect to MasterPass Example

  https://sandbox.masterpass.com/Checkout/Authorize?oauth_token=c43d6591aa0d01ba85d95f8c1832983f&acceptable_cards=master,amex,diners,discover,maestro,visa&checkout_identifier=a4a6x1ywxlkxzhensyvad1hepuouaesuv&version=v6&suppress_shipping_address=false&accept_reward_program=false

Redirect to Merchant Callback URL Example

http://www.somemerchant.com/checkoutcomplete.htm?status=success&checkout_resource_url=https%3A%2F%2Fstage.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F10189977%3Fwallet%3Dphw&oauth_verifier=6c50838e31b7441e6eafa2229385452889255b13&oauth_token=d6fa60984308aebb6183d44fb9688fb9dc8332dc

Note: the checkout_resource_url field must be URL decoded.

Access Token Service

Access Token Parameters

	access_token Request	access_token Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
realm	X
oauth_token	X	X
oauth_expires_in		X
oauth_token_secret		X
xoauth_request_auth_url		X
oauth_verifier	X

Access Token Parameter Details

Access Token-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version.	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	realm	Used to differentiate between our mobile and full site. Currently not used.	eWallet
	oauth_verifier	Verifier is returned on the callback and used in the access token request
	oauth_token	oAuth token obtained from request token call	Variable
Access Token-Response		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Request Token	oauth_expires_in	Time the Request Token expires in seconds	900
	oauth_token_secret	Oauth Secret	Variable

Signature Base String Example

  POST&https%3A%2F%2Fsandbox.api.mastercard.com%2Foauth%2Fconsumer%2Fv1%2Faccess_token&oauth_callback%3Dhttp%253A%252F%252Fprojectabc.com%252Fmerchant%252FCallback.jsp%26oauth_consumer_key%3DZGho8Df8vqW-IpGCIu559HYriL093IBXdJeKavp4dce9db2a%25216464586653467358724b616c74475445443349466a413d3d%26oauth_nonce%3D1144858422275061%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1339613436%26oauth_token%3Da02c5c5c1a128c2cebc650ea9aa3dfb7%26oauth_verifier%3D96782690ce6289d0faf45be777d2d86f%26oauth_version%3D1.0

HTTP Request Example

POST /oauth/consumer/v1/access_token HTTP/1.1Authorization: OAuth
  oauth_callback="http%3A%2F%2Fprojectabc.com%2Fmerchant%2FCallback.jsp",oauth_signature="OKcp2KmzUEr8kqs%2F7m2ePV6uJ30n786AnZ0kvJSNGV4Q8%2FP3%2Bs7lqv7YIk0yb2h0fUTC7gSHsfJwmCCk4ES%2FlWVIpSRmVxotgLacxj%2FXI08DS0BZ0XMZZIkhY5Dcg775U3Re4GRN4xa9vmbztOBd%2BKkNyFIw35To22N1ZUHrYpI%3D",oauth_version="1.0",oauth_nonce="1144858422275061",oauth_signature_method="RSA-SHA1",oauth_consumer_key="ZGho8Df8vqW-IpGCIu559HYriL093IBXdJeKavp4dce9db2a%216464586653467358724b616c74475445443349466a413d3d",oauth_token="a02c5c5c1a128c2cebc650ea9aa3dfb7",oauth_verifier="96782690ce6289d0faf45be777d2d86f",oauth_timestamp="1339613436",realm="eWallet"

HTTP Response Example

  oauth_token=9429f23bd08f992c41fb5ddabcc03ecd&oauth_token_secret=cd1ab178419c2111fb1171083f5dc8d9

Checkout Resource

Checkout Parameters

	Checkout resource Request	Checkout Resource Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
realm	X
oauth_token	X
checkout_resource_url	Used as endpoint
Checkout XML		X

Checkout Parameter Details

Checkout Resource-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version.	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method.	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	realm	Used to differentiate between our mobile and full site. Currently not used.	eWallet
	oauth_verifier	Verifier is returned on the callback and used in the access token request
Checkout Resource-Response		Description	Possible Values
Oauth Token	oauth_token	oauth_token is sent in the signature base string, authorization header and redirect URL	Variable
Access Token	checkout_resource_url	Endpoint used to request the users billing and shipping information from MasterPass	Variable
Transfer XML Strings	Checkout XML	Details of the Checkout

Signature Base String Example

  GET&https%3A%2F%2Fsandbox.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F349484&oauth_consumer_key%3DcLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%2521414f4859446c4a366c726a327474695545332b353049303d%26oauth_nonce%3D25780242027605%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1380053717
  %26oauth_token%3Dc531cce64ca2d88ecb223a8a37afe98e%26oauth_version%3D1.0

HTTP Request Example

GET /masterpass/v6/checkout/4400 HTTP/1.1 Authorization: OAuth  oauth_signature="CKs9xjeHksuVNKotsRmoOG0Rwmveoc2dTqnNw8IwlsZeG1ZNkVrPsTjde32YBndHR7iLFvujrY1GJRFsWHFeQGVFbCidGUVbOwtDtm5ArJPTIbedw21GhhXGWRrRpjh4ZhHLDOdSxtxjSCJaHFQkfGyq%2B0DHhMLLYizIzbH8%2Fp0%3D",oauth_version="1.0",oauth_nonce="25780242027605",oauth_signature_method="RSA-SHA1",oauth_consumer_key="cLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%21414f4859446c4a366c726a327474695545332b353049303d",oauth_token="c531cce64ca2d88ecb223a8a37afe98e",oauth_timestamp="1380053717",realm="eWallet"

Checkout XML

V6/Checkout-XML Schema

URL: https://api.mastercard.com/masterpass/v6/checkout/

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="Checkout" type="Checkout"/>
    <xs:complexType name="Checkout">
        <xs:sequence>
            <xs:element name="Card" type="Card"/>
            <xs:element name="TransactionId" type="xs:string"/>
            <xs:element name="Contact" type="Contact"/>
            <xs:element name="ShippingAddress" type="ShippingAddress" minOccurs="0"/>
            <xs:element name="AuthenticationOptions" type="AuthenticationOptions" minOccurs="0"/>
            <xs:element name="RewardProgram" type="RewardProgram" minOccurs="0"/>
            <xs:element name="WalletID" type="xs:string"/>
            <xs:element name="PreCheckoutTransactionId" type="xs:string" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="AuthenticationOptions">
        <xs:sequence>
            <xs:element name="AuthenticateMethod" type="xs:string" minOccurs="0"/>
            <xs:element name="CardEnrollmentMethod" type="xs:string" minOccurs="0"/>
            <xs:element name="CAvv" type="xs:string" minOccurs="0"/>
            <xs:element name="EciFlag" type="xs:string" minOccurs="0"/>
            <xs:element name="MasterCardAssignedID" type="xs:string" minOccurs="0"/>
            <xs:element name="PaResStatus" type="xs:string" minOccurs="0"/>
            <xs:element name="SCEnrollmentStatus" type="xs:string" minOccurs="0"/>
            <xs:element name="SignatureVerification" type="xs:string" minOccurs="0"/>
            <xs:element name="Xid" type="xs:string" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="Card">
        <xs:sequence>
            <xs:element name="BrandId" type="NonEmptyString"/>
            <xs:element name="BrandName" type="NonEmptyString"/>
            <xs:element name="AccountNumber" type="NonEmptyString"/>
            <xs:element name="BillingAddress" type="Address"/>
            <xs:element name="CardHolderName" type="NonEmptyString"/>
            <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="Address">
        <xs:sequence>
            <xs:element name="City" type="NonEmptyString"/>
            <xs:element name="Country" type="Country"/>
            <xs:element name="CountrySubdivision" type="NonEmptyString" minOccurs="0"/>
            <xs:element name="Line1" type="NonEmptyString"/>
            <xs:element name="Line2" type="NonEmptyString" minOccurs="0"/>
            <xs:element name="Line3" type="NonEmptyString" minOccurs="0"/>
            <xs:element name="PostalCode" type="NonEmptyString" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="Contact">
        <xs:sequence>
            <xs:element name="FirstName" type="NonEmptyString"/>
            <xs:element name="MiddleName" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:minLength value="1"/>
                        <xs:maxLength value="150"/>
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="LastName" type="NonEmptyString"/>
            <xs:element name="Gender" type="Gender" minOccurs="0"/>
            <xs:element name="DateOfBirth" type="DateOfBirth" minOccurs="0"/>
            <xs:element name="NationalID" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:minLength value="1"/>
                        <xs:maxLength value="150"/>
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Country" type="Country"/>
            <xs:element name="EmailAddress" type="EmailAddress"/>
            <xs:element name="PhoneNumber" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="DateOfBirth">
        <xs:sequence>
            <xs:element name="Year">
                <xs:simpleType>
                    <xs:restriction base="xs:int">
                        <xs:minInclusive value="1900"/>
                        <xs:pattern value="\d{4}"/>
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Month" type="Month"/>
            <xs:element name="Day">
                <xs:simpleType>
                    <xs:restriction base="xs:int">
                        <xs:minInclusive value="1"/>
                        <xs:maxInclusive value="31"/>
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:simpleType name="Gender">
        <xs:restriction base="xs:token">
            <xs:enumeration value="M"/>
            <xs:enumeration value="F"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:complexType name="ShippingAddress">
        <xs:complexContent>
            <xs:extension base="Address">
                <xs:sequence>
                    <xs:element name="RecipientName" type="NonEmptyString"/>
                    <xs:element name="RecipientPhoneNumber" type="xs:string"/>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
    <xs:complexType name="RewardProgram">
        <xs:sequence>
            <xs:element name="RewardNumber" type="xs:string"/>
            <xs:element name="RewardId" type="xs:string"/>
            <xs:element name="RewardName" type="xs:string" minOccurs="0"/>
            <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:simpleType name="NonEmptyString">
        <xs:restriction base="xs:string">
            <xs:minLength value="1"/>
            <xs:whiteSpace value="collapse"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Country">
        <xs:restriction base="xs:string">
            <xs:pattern value="[A-Z]{2}"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="EmailAddress">
        <xs:restriction base="xs:string">
            <xs:pattern value="[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*@[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Month">
        <xs:restriction base="xs:int">
            <xs:minInclusive value="1"/>
            <xs:maxInclusive value="12"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Year">
        <xs:restriction base="xs:int">
            <xs:minInclusive value="2013"/>
            <xs:pattern value="\d{4}"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
        </xs:sequence>
        <xs:anyAttribute/>
    </xs:complexType>
</xs:schema>

V6/Checkout -Sample Response

URL: https://api.mastercard.com/online/v6/checkout/512345?wallet=phw

<Checkout>
  <Card>
    <BrandId>master</BrandId>
    <BrandName>MasterCard</BrandName>
    <AccountNumber>5435579315709649</AccountNumber>
    <BillingAddress>
      <City>Anytown</City>
      <Country>US</Country>
      <Line1>100 Not A Real Street</Line1>
      <PostalCode>63011</PostalCode>
    </BillingAddress>
    <CardHolderName>Joe Test</CardHolderName>
    <ExpiryMonth>02</ExpiryMonth>
    <ExpiryYear>2016</ExpiryYear>
  </Card>
  <TransactionId>72525</TransactionId>
  <Contact>
    <FirstName>Joe</FirstName>
    <MiddleName>M</MiddleName>
    <LastName>Test</LastName>
    <Gender>M</Gender>
    <DateOfBirth>
      <Year>1975</Year>
      <Month>03</Month>
      <Day>28</Day>
    </DateOfBirth>
    <NationalID>30258374209</NationalID>
    <Country>US</Country>
    <EmailAddress>joe.test@email.com</EmailAddress>
    <PhoneNumber>1-9876543210</PhoneNumber>
  </Contact>
  <ShippingAddress>
    <City>O Fallon</City>
    <Country>US</Country>
    <CountrySubdivision>US-AK</CountrySubdivision>
    <Line1>1 main street</Line1>
    <PostalCode>63368</PostalCode>
    <RecipientName>Joe Test</RecipientName>
    <RecipientPhoneNumber>1-9876543210</RecipientPhoneNumber>
  </ShippingAddress>
  <WalletID>101</WalletID>
  <RewardProgram>
    <RewardNumber>123</RewardNumber>
    <RewardId>1234</RewardId>
    <RewardName>ABC Rewards</RewardName>
    <ExpiryMonth>02</ExpiryMonth>
    <ExpiryYear>2015</ExpiryYear>
  </RewardProgram>
</Checkout>

V6 - Checkout XML Details

CheckoutXML	Element	Description	Type	Min-Max
	Checkout	Root Element	XML	-
Checkout	Card	Child Element	XML	-
Card	BrandId	Identifies the card brand id e.g. master for MasterCard.	Alpha Numeric	0-8
	BrandName	Identifies the card brand name e.g. MasterCard	String	0-255
	AccountNumber	Card number or primary account number that identifies the card	Integer	13-24
	BillingAddress	Billing Address for the card holder.	XML	-
	CardHolderName	Cardholder name	String	1-100
	ExpiryMonth	Expiration month displayed on the payment card.	Date	XML format
	ExpiryYear	Expiration year displayed on the payment card.	Date	XML format
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
Checkout	TransactionID	Child Element	String	1-255
Checkout	Contact	Child Element	XML
Contact (V5 Updates)	FirstName	Contact First Name	String	1-20
Optional	MiddleName	Contact Middle Name or Initial	String	1-20
	LastName	Contact Surname	String	1-20
Optional*	Gender	Contact Gender (M or F)	"M" or "F"
Optional*	DateOfBirth	Contact DOB - YYYY/MM/DD	Sequence: Year (Int); Month (Int) Day (Int)	Y (4) M (2) D (2)
Optional* (dependent on merchant country of incorporation and the consumer country of residence)	NationalID	Contact National Identification	String	1-150
Optional	Country	Contact Country of Residence	String	0-2
	EmailAddress	Contact Email Address	String	5-512
	PhoneNumber	Contact Phone	String	3-20
	DateOfBirth	Contact DOB
	Year	Contact DOB Year	Integer	4
	Month	Contact DOB Month	Integer	1-2
	Day	Contact DOB Day	Integer	1-2
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
Checkout	ShippingAddress	Child Element	XML	-
ShippingAddress	Address	Child Element	XML	-
Address	City	Cardholder's city	String	0-25
	Country	Cardholder's country. Defined by ISO 3166-1 alpha-2 digit country codes e.g. US is United States, AU is Australia, CA is Canada, GB is United Kingdom, etc.	String	2
	CountrySubdivision	Cardholder's country subdivision. Defined by ISO 3166-1 alpha-2 digit code e.g. US-VA is Virginia, US-OH is Ohio	String	5
	Line 1	Address line 1 used for Street number and Street Name.	String	1-40
	Line 2	Address line 2 used for Apt Number, Suite Number ,etc.	String	0-40
	Line 3	Address line 3 used to enter remaining address information if it does not fit in Line 1 and Line 2	String	0-255
	PostalCode	Postal Code or Zip Code appended to mailing address for the purpose of sorting mail.	String	0-20
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
ShippingAddress	RecipientName	Name of person set to receive the shipped order.	String	1-100
ShippingAddress	RecipientPhoneNumber	Phone of the person set to receive the shipped order.	String	3-20
Checkout	AuthenticationOptions	Child Element	XML	-
AuthenticationOptions	AuthenticateMethod	Method used to authenticate the cardholder at checkout. Valid values are "MERCHANT ONLY", "3DS" and "No Authentication".	Alpha	NA
	CardEnrollmentMethod	Method by which the card was added to the wallet. Valid values are: Manual Direct Provisioned 3DS Manual NFC Tap	Alpha	NA
	CAvv	(CAVV) Cardholder Authentication Verification Value generated by card issuer upon successful authentication of the cardholder and which should be . This should be passed in the authorization message	Alpha Numeric	NA
	EciFlag:	Electronic commerce indicator (ECI) flag. Present when the PaRes value is "Y" or "A." Possible values are; 01-Indicates Merchant Liability (MasterCard) 02-Indicates Card Issuer Liability (MasterCard) 05-Indicates Card Issuer Liability (Visa) 06-Indicates Card Issuer Liability (Visa) 07-Indicates Merchant Liability (Visa)	Alpha Numeric	NA
	MasterCardAssignedID	This value is assigned by MasterCard and represents programs associated directly with Maestro cards. This field should be supplied in the authorization request by the merchant.	Alpha Numeric	NA
	PaResStatus	A message formatted, digitally signed, and sent from the ACS (issuer) to the MPI providing the results of the issuer's SecureCode/Verified by Visa cardholder authentication. Possible values are: Y-the card was successfully authenticated via 3DS A-signifies that either; 1) the transaction was successfully authenticated via a 3DS attempts transaction; or 2)The cardholder was prompted to activate 3DS during shopping but declined (Visa). U-Authentication results were unavailable	Alpha	NA
	SCEnrollmentStatus	SecureCode Enrollment Status: Indicates if the issuer of the card supports payer authentication for this card. Possible values are; Y-The card is eligible for 3DS authentication. N-The card is not eligible for 3DS authentication. U-Lookup of the card's 3DS eligibility status was either unavailable, or the card is inapplicable (i.e. prepaid cards).	Alpha	NA
	SignatureVerification:	Signature Verification. Possible values are: Y- Indicates that the signature of the PaRes has been validated successfully and the message contents can be trusted. N-Indicates that for a variety of reasons (tampering, certificate expiration, etc.) the PaRes could not be validated, and the result should not be trusted.	Alpha	NA
	XID	Transaction identifier resulting from authentication processing.	Alpha Numeric	NA
	ExtensionPoint	Reserved for future enhancement. Optional	Any
Checkout	Reward Program	Child Element	XML
Reward Program	RewardNumber	Consumer's reward number associated with the reward program	Alpha Numeric
Reward Program	RewardId	ID associated with the reward program	Alpha Numeric
	RewardName	Name of reward program	Alpha Numeric
	ExpiryMonth	Month the reward program expires	Alpha Numeric
	ExpiryYear	Year the reward program expires	Alpha Numeric
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
PreCheckoutTransactionId	Pre Checkout Transaction ID	ID associated with the PreCheckout Transaction	Alpha Numeric

* Only when legally required and enabled by MasterPass

PreCheckout Resource

Pre Checkout Parameters

	Checkout resource Request	Checkout Resource Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
realm	X
oauth_token	X
PreCheckout Data Request XML	X
PreCheckout Data Response XML		X

Pre Checkout Parameter Details

PreCheckout Resource-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version.	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method.	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	oauth_token	Long access token used to retrieve precheckout data
	realm	Used to differentiate between our mobile and full site. Currently not used.	eWallet
Transfer XML Strings	PreCheckout Data Request XML	Details of the PreCheckout Request
PreCheckout Resource-Response		Description	Possible Values
Transfer XML Strings	Pre Checkout XML	Details of the PreCheckout

Signature Base String Example

  GET&https%3A%2F%2Fsandbox.api.mastercard.com%2Fmasterpass%2Fv6%2Fcheckout%2F349484&oauth_consumer_key%3DcLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%2521414f4859446c4a366c726a327474695545332b353049303d%26oauth_nonce%3D25780242027605%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1380053717
  %26oauth_token%3Dc531cce64ca2d88ecb223a8a37afe98e%26oauth_version%3D1.0

HTTP Request Example

POST /masterpass/v6/precheckout/4400 HTTP/1.1Authorization: OAuth
  oauth_signature="CKs9xjeHksuVNKotsRmoOG0Rwmveoc2dTqnNw8IwlsZeG1ZNkVrPsTjde32YBndHR7iLFvujrY1GJRFsWHFeQGVFbCidGUVbOwtDtm5ArJPTIbedw21GhhXGWRrRpjh3ZhHLDOdSxtxjSCJaHFQkfGyq%2B0DHhMLLYizIzbH8%2Fp0%3D",oauth_version="1.0",oauth_nonce="25780242027605",oauth_signature_method="RSA-SHA1",oauth_consumer_key="cLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%21414f4859446c4a366c726a327474695545332b353049303d",oauth_token="c531cce64ca2d88ecb223a8a37afe98e",oauth_timestamp="1380053717",realm="eWallet"

V6/PreCheckoutDataRequest-XML Schema

URL: https://api.mastercard.com/masterpass/v6/precheckout

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="PrecheckoutDataRequest" type="PrecheckoutDataRequest"/>
    <xs:complexType name="PrecheckoutDataRequest">
        <xs:sequence>
            <xs:element name="PairingDataTypes" type="PairingDataTypes"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PairingDataType" type="PairingDataType"/>
    <xs:complexType name="PairingDataType">
        <xs:sequence>
            <xs:element name="Type">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:enumeration value="CARD"/>
                        <xs:enumeration value="ADDRESS"/>
                        <xs:enumeration value="REWARD_PROGRAM"/>
                        <xs:enumeration value="PROFILE"/>
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PairingDataTypes" type="PairingDataTypes"/>
    <xs:complexType name="PairingDataTypes">
        <xs:sequence>
            <xs:element name="PairingDataType" type="PairingDataType" minOccurs="1" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
        </xs:sequence>
        <xs:anyAttribute/>
    </xs:complexType>
</xs:schema>

V6/PreCheckoutData -Sample Request

URL: https://api.mastercard.com/masterpass/v6/precheckout

<PrecheckoutDataRequest>
    <PairingDataTypes>
        <PairingDataType>
            <Type>CARD</Type>
        </PairingDataType>
        <PairingDataType>
            <Type>ADDRESS</Type>
        </PairingDataType>
        <PairingDataType>
            <Type>PROFILE</Type>
        </PairingDataType>
        <PairingDataType>
            <Type>REWARD_PROGRAM</Type>
        </PairingDataType>
    </PairingDataTypes>
</PrecheckoutDataRequest>

V6 - PreCheckoutData XML Details

PreCheckoutXML	Element	Description	Type	Min-Max
	PrecheckoutDataRequest	Root Element	XML	-
PrecheckoutDataRequest	PairingDataTypes	Child Element	XML	-
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
	PairingDataType	Child Element	XML	-
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
PairingDataType	PairingDataType	Child Element	XML	-
PairingDataType	PairingDataType	Card, ShippingAddress, Reward_Program, Profile	String	-
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-

V6/PreCheckoutDataResponse-XML Schema

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="PrecheckoutDataResponse" type="PrecheckoutDataResponse"/>
    <xs:complexType name="PrecheckoutDataResponse">
        <xs:sequence>
            <xs:element name="PrecheckoutData" type="PrecheckoutData"/>
            <xs:element name="WalletPartnerLogoUrl" type="xs:anyURI"/>
            <xs:element name="MasterpassLogoUrl" type="xs:anyURI"/>
            <xs:element name="LongAccessToken" type="xs:string" minOccurs="1"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PrecheckoutData" type="PrecheckoutData"/>
    <xs:complexType name="PrecheckoutData">
        <xs:sequence>
            <xs:element name="Cards" type="PrecheckoutCards"/>
            <xs:element name="Contact" type="Contact" minOccurs="0"/>
            <xs:element name="ShippingAddresses" type="PrecheckoutShippingAddresses"/>
            <xs:element name="RewardPrograms" type="PrecheckoutRewardPrograms"/>
            <xs:element name="WalletName" type="xs:string" minOccurs="1"/>
            <xs:element name="PrecheckoutTransactionId" type="xs:string" />
            <xs:element name="ConsumerWalletId" type="xs:string" minOccurs="1"/>
            <xs:element name="Errors" type="Errors" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PrecheckoutCards" type="PrecheckoutCards"/>
    <xs:complexType name="PrecheckoutCards">
        <xs:sequence>
            <xs:element name="Card" type="PrecheckoutCard" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PrecheckoutCard" type="PrecheckoutCard"/>
    <xs:complexType name="PrecheckoutCard">
        <xs:sequence>
            <xs:element name="BrandId" type="xs:string" />
            <xs:element name="BrandName" type="xs:string" />
            <xs:element name="BillingAddress" type="Address" />
            <xs:element name="CardHolderName" type="xs:string" />
            <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
            <xs:element name="CardId" type="xs:string"></xs:element>
            <xs:element name="LastFour" type="xs:string" />
            <xs:element name="CardAlias" type="xs:string" />
            <xs:element name="SelectedAsDefault" type="xs:boolean" />
            <xs:element name="BNBUnverified" type="xs:boolean" />
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
      <xs:complexType name="Contact">
    <xs:sequence>
      <xs:element name="FirstName" type="NonEmptyString"/>
      <xs:element name="MiddleName" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:minLength value="1"/>
            <xs:maxLength value="150"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="LastName" type="NonEmptyString"/>
      <xs:element name="Gender" type="Gender" minOccurs="0"/>
      <xs:element name="DateOfBirth" type="DateOfBirth" minOccurs="0"/>
      <xs:element name="NationalID" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:minLength value="1"/>
            <xs:maxLength value="150"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="Country" type="Country"/>
      <xs:element name="EmailAddress" type="EmailAddress"/>
      <xs:element name="PhoneNumber" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:simpleType name="NonEmptyString">
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:whiteSpace value="collapse"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="Gender">
    <xs:restriction base="xs:token">
      <xs:enumeration value="M"/>
      <xs:enumeration value="F"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:complexType name="DateOfBirth">
    <xs:sequence>
      <xs:element name="Year">
        <xs:simpleType>
          <xs:restriction base="xs:int">
            <xs:minInclusive value="1900"/>
            <xs:pattern value="\d{4}"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="Month" type="Month"/>
      <xs:element name="Day">
        <xs:simpleType>
          <xs:restriction base="xs:int">
            <xs:minInclusive value="1"/>
            <xs:maxInclusive value="31"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:simpleType name="Month">
    <xs:restriction base="xs:int">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="12"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="Year">
    <xs:restriction base="xs:int">
      <xs:minInclusive value="2013"/>
      <xs:pattern value="\d{4}"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="Country">
    <xs:restriction base="xs:string">
      <xs:pattern value="[A-Z]{2}"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="EmailAddress">
    <xs:restriction base="xs:string">
      <xs:pattern value="[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*@[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*"/>
    </xs:restriction>
  </xs:simpleType>
    <xs:element name="PrecheckoutShippingAddresses" type="PrecheckoutShippingAddresses"/>
    <xs:complexType name="PrecheckoutShippingAddresses">
        <xs:sequence>
            <xs:element name="ShippingAddress" type="PrecheckoutShippingAddress" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PrecheckoutShippingAddress" type="PrecheckoutShippingAddress"/>
    <xs:complexType name="PrecheckoutShippingAddress">
        <xs:complexContent>
            <xs:extension base="Address">
                <xs:sequence>
                    <xs:element name="RecipientName" type="xs:string" />
                    <xs:element name="RecipientPhoneNumber" type="xs:string" />
                    <xs:element name="AddressId" type="xs:string"/>
                    <xs:element name="SelectedAsDefault" type="xs:boolean" />
                    <xs:element name="ShippingAlias" type="xs:string" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
  <xs:complexType name="Address">
    <xs:sequence>
      <xs:element name="City" type="NonEmptyString"/>
      <xs:element name="Country" type="Country"/>
      <xs:element name="CountrySubdivision" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="Line1" type="NonEmptyString"/>
      <xs:element name="Line2" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="Line3" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="PostalCode" type="NonEmptyString" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
    <xs:element name="PrecheckoutRewardPrograms" type="PrecheckoutRewardPrograms"/>
    <xs:complexType name="PrecheckoutRewardPrograms">
        <xs:sequence>
            <xs:element name="RewardProgram" type="PrecheckoutRewardProgram" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:element name="PrecheckoutRewardProgram" type="PrecheckoutRewardProgram"/>
    <xs:complexType name="PrecheckoutRewardProgram">
        <xs:sequence>
            <xs:element name="RewardNumber" type="xs:string"/>
            <xs:element name="RewardId" type="xs:string"/>
            <xs:element name="RewardName" type="xs:string" minOccurs="0"/>
            <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
            <xs:element name="RewardProgramId" type="xs:string"/>
            <xs:element name="RewardLogoUrl" type="xs:string" />
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
  <xs:complexType name="Error">
    <xs:sequence>
      <xs:element name="Description" type="xs:string" minOccurs="0"/>
      <xs:element name="ReasonCode" type="xs:string"/>
      <xs:element name="Recoverable" type="xs:boolean"/>
      <xs:element name="Source" type="xs:string"/>
      <xs:element name="Details" type="Details" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="Errors">
    <xs:sequence>
      <xs:element name="Error" type="Error" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="Details">
    <xs:sequence>
      <xs:element name="Detail" type="Detail" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="Detail">
    <xs:sequence>
      <xs:element name="Name" type="xs:string"/>
      <xs:element name="Value" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
      <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
    </xs:sequence>
    <xs:anyAttribute/>
  </xs:complexType>
</xs:schema>



V6/PreCheckoutData -Sample Response

<PrecheckoutDataResponse>
    <PrecheckoutData>
        <Cards>
            <Card>
                <BrandId>master</BrandId>
                <BrandName>MasterCard</BrandName>
                <CardHolderName>Joe Cardholder</CardHolderName>
                <ExpiryMonth>2</ExpiryMonth>
                <ExpiryYear>2016</ExpiryYear>
                <CardId>10153047</CardId>
                <LastFour>2149</LastFour>
                <CardAlias>Rewards Card</CardAlias>
                <SelectedAsDefault>false</SelectedAsDefault>
            </Card>
            <Card>
                <BrandId>master</BrandId>
                <BrandName>MasterCard</BrandName>
                <CardHolderName>Joe Cardholder</CardHolderName>
                <ExpiryMonth>2</ExpiryMonth>
                <ExpiryYear>2016</ExpiryYear>
                <CardId>12963120</CardId>
                <LastFour>0144</LastFour>
                <SelectedAsDefault>true</SelectedAsDefault>
            </Card>
        </Cards>
        <Contact>
            <FirstName>Joe</FirstName>
            <LastName>Cardholder</LastName>
            <Country>US</Country>
            <EmailAddress>joe.cardholder@gmail.com</EmailAddress>
            <PhoneNumber>1-6365555309</PhoneNumber>
        </Contact>
        <ShippingAddresses>
            <ShippingAddress>
                <City>chesterfield</City>
                <Country>US</Country>
                <CountrySubdivision>US-MO</CountrySubdivision>
                <Line1>123 main st</Line1>
                <Line2/>
                <Line3/>
                <PostalCode>63017</PostalCode>
                <RecipientName>Joe Cardholder</RecipientName>
                <RecipientPhoneNumber>1-6365555309</RecipientPhoneNumber>
                <AddressId>10423457</AddressId>
                <SelectedAsDefault>true</SelectedAsDefault>
            </ShippingAddress>
            <ShippingAddress>
                <City>St Louis</City>
                <Country>US</Country>
                <CountrySubdivision>US-MO</CountrySubdivision>
                <Line1>11642 Frontier Dr</Line1>
                <Line2/>
                <Line3/>
                <PostalCode>63146</PostalCode>
                <RecipientName>Joe Cardholder</RecipientName>
                <RecipientPhoneNumber>1-6365555309</RecipientPhoneNumber>
                <AddressId>10073359</AddressId>
                <SelectedAsDefault>false</SelectedAsDefault>
            </ShippingAddress>
        </ShippingAddresses>
        <WalletName>Mobile</WalletName>
        <PrecheckoutTransactionId>a4d6x6s-55pqrj-hyko44a5-1-hyq76c51-a4a</PrecheckoutTransactionId>
        <ConsumerWalletId>10073003</ConsumerWalletId>
    </PrecheckoutData>
    <WalletPartnerLogoUrl>https://www.masterpass.com/walletlogo.png </WalletPartnerLogoUrl>       <MasterpassLogoUrl>https://www.masterpass.com/masterpasslogo.png </MasterpassLogoUrl>    <LongAccessToken>a2abae6b0b21be8fc23113bf8477a7dd1f0f4041</LongAccessToken>
</PrecheckoutDataResponse>


V6 - PreCheckoutData Response XML Details

PreCheckouthataXML	Element	Description	Type	Min-Max
	PrecheckoutData	Root Element	XML	-
PrecheckoutData	Cards	Child Element	PrecheckoutCard	-
	Contact	Child Element	Contact	-
	ShippingAddresses	Child Element	PrecheckoutShippingAddress	-
	WalletName	Child Element	String	-
	RewardPrograms	Child Element	PrecheckoutRewardProgram	-
	PrecheckoutTransactionId	Child Element	String	-
	ConsumerWalletId	Child Element	String	-
	WalletPartnerLogoUrl	Child Element	String	-
	MasterpassLogoUrl	Child Element	String
	LongAccessToken	Child Element	String
	Errors	Child Element	String	-
	PrecheckoutCard	Root Element	String	-
	CardId	Child Element	String	-
	BrandId	Child Element	String	-
	BrandName	Child Element	String	-
	BillingAddress	Child Element	Address	-
	CardHolderName	Child Element	String	-
	LastFour	Child Element	String	-
	CardAlias	Child Element	String	-
	ExpiryMonth	Child Element	String	0-9, 2
	ExpiryYear	Child Element	String	0-9, 4
	SelectedAsDefault	Child Element	Boolean	-
	ExtensionPoint		Any	-
	Contact	Root Element	String	-
Contact	FirstName	Child Element	String	-
	MiddleName	Child Element	String	1-150
	LastName	Child Element	String	-
	Gender*	Child Element	String	M/F
	DateOfBirth	Child Element	String	-
DateOfBirth	Year	Child Element	Integer	1900, 4
	Month	Child Element	Integer	1-12
	Day	Child Element	Integer	1-31
	ExtensionPoint		Any	-
Contact	NationalId*	Child Element	String	1-150
	Country	Child Element	Country	-
	EmailAddress	Child Element	EmailAddress	-
	PhoneNumber	Child Element	String	-
	ExtensionPoint		Any	-
	PrecheckoutShippingAddress	Root Element	String	-
PrecheckoutShippingAddress	Address	Child Element	String	-
Address	AddressId	Child Element	String	-
	RecipientName	Child Element	String	-
	RecipientPhoneNumber	Child Element	String	-
	SelectedAsDefault	Child Element	Boolean	-
	ShippingAlias	Child Element	String	-
	ExtensionPoint		Any	-
	PrecheckoutRewardProgram	Root Element	String	-
PrecheckoutRewardProgram	RewardProgramId	Child Element	String	-
	RewardNumber	Child Element	String	-
	RewardId	Child Element	String	-
	RewardName	Child Element	String	-
	ExpiryMonth	Child Element	String	0-9, 2
	ExpiryYear	Child Element	String	0-9, 4
	RewardLogo	Child Element	Logo	-
	ExtensionPoint		Any	-
	Address	Root Element	String	-
Address	Line1	Child Element	String	1-40
	Line2	Child Element	String	0-40
	Line3	Child Element	String	0-255
	City	Child Element	String	1-25
	CountrySubdivision	Child Element	String	0-255
	PostalCode	Child Element	String	0-10
	Country	Child Element	String	0-255
	ExtensionPoint		Any	-
	Country	Root Element	String	-
Country	Code	Child Element	String	A-Z, 3
	Name	Child Element	String	-
	CallingCode	Child Element	String	-
	Locale	Child Element	String	-
	EmailAddress	Root Element	String	-
	Logo	Root Element	String	-
Logo	Ref	Child Element	String	-
	Height	Child Element	String	-
	Width	Child Element	String	-
	BackgroundColor	Child Element	String	-
	Url	Child Element	String	-
	LongDescription	Child Element	String	-
	Errors	Root Element	Error	-
Errors	Error	Child Element	String	-
Error	Description	Child Element	String	-
	ReasonCode	Child Element	String	-
	Recoverable	Child Element	Boolean	-
	Source	Child Element	String	-

*Only when legally required and enabled by MasterPass

ExtensionPoint Elements

Starting with API v6, all schema container elements contain a new optional element named "ExtensionPoint". These elements are intended to provide expandability of the API without requiring a new major version. These elements are defined to contain a sequence of "xs:any", meaning that any XML content can be contained within the element. In order to ensure future expandability, all integrators must not perform any validation of elements received inside an ExtensionPoint element, beyond any that may be defined by MasterPass in the future with a separate schema. Any such extensions will be optional. Further, only authorized schemas will be allowed inside ExtensionPoint elements, and any unknown elements will be dropped by MasterPass.

ExtensionPoint - Sample

<ExtensionPoint>
  <s:SampleExtension xmlns:s=”https://www.masterpass.com/location/of/example/ns”>
    <s:SampleField>Sample Value</s:SampleField>
  </s:SampleExtension>
  <f:AnotherExampleExtension xmlns:f=”https://www.masterpass.com/location/of/example2/ns>
Lightbox    <f:SampleContainer>
      <f:AnotherSampleField>Sample Value</f:AnotherSampleField>
    </f:SampleContainer>
  </f:AnotherExampleExtension>
</ExtensionPoint>

Postback Service

Postback Parameters

	Post Transaction Request	Post Transaction Response
oauth_signature	X
oauth_version	X
oauth_nonce	X
oauth_signature_method	X
oauth_consumer_key	X
oauth_timestamp	X
oauth_body_hash	X
MerchantTransactions XML	X	X

Postback Parameter Details

Post Transaction-Request		Description	Possible Values
Signature Base String Authorization Header	oauth_signature	RSA/SHA1 signature generated from the signature base string	Variable
	oauth_version	Oauth version.	1.0
	oauth_nonce	Unique alphanumeric string generated from code	Variable
	oauth_signature_method	oauth signature method.	RSA-SHA1
	oauth_consumer_key	Consumer Key generated when creating a checkout project on MasterPass Merchant portal	Variable
	oauth_timestamp	Current timestamp	Variable
	oauth_body_hash	SHA1 hash of the message body	Variable
Transfer XML Strings	Merchant Transactions XML	Transaction details
Post Transaction-Response		Description	Possible Values
Transfer XML Strings	Merchant Transactions XML	Transaction details

Signature Base String Example

  POST&https%3A%2F%2Fsandbox.api.mastercard.com%2Fmasterpass%2Fv6%2Ftransaction
  &oauth_body_hash%3DycNt7A676VEY7i0SkyymKorihCg%253D%26oauth_consumer_key%3DcLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%2521414f4859446c4a366c726a327474695545332b353049303d%26oauth_nonce%3D26123188000346%26oauth_signature_method%3DRSA-SHA1%26oauth_timestamp%3D1380054060%26oauth_version%3D1.0

HTTP Request Example

POST /masterpass/v6/transaction HTTP/1.1Authorization: OAuth
  oauth_signature="Aom0wFGFI7ItYV1IZFn125BoD6jgFtdX15dQ8XbjvMGgKgKtJ5awV7wSMGwUcceGlpl52HFS%2B%2BOQzVrCdXUidvgeKOX1nHDFhns0l1yIaqGdkJQYR%2BCQGu1qo7xVjvzTqpXUlrc2uzVCjyLoQEroIWv5cAOj5l4aBxDopz7OKQA%3D",oauth_body_hash="ycNt7A676VEY7i0SkyymKorihCg%3D",oauth_version="1.0",oauth_nonce="26123188000346",oauth_signature_method="RSA-SHA1",oauth_consumer_key="cLb0tKkEJhGTITp_6ltDIibO5Wgbx4rIldeXM_jRd4b0476c%21414f4859446c4a366c726a327474695545332b353049303d",oauth_timestamp="1380054060"

MerchantTransactions Request-Schema

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="MerchantTransactions" type="MerchantTransactions"/>
    <xs:complexType name="MerchantTransactions">
        <xs:sequence>
            <xs:element name="MerchantTransactions" type="MerchantTransaction" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="MerchantTransaction">
        <xs:sequence>
            <xs:element name="TransactionId" type="xs:string"/>
            <xs:element name="ConsumerKey" type="xs:string" minOccurs="0"/>
            <xs:element name="Currency" type="xs:string"/>
            <xs:element name="OrderAmount" type="xs:long"/>
            <xs:element name="PurchaseDate" type="xs:dateTime"/>
            <xs:element name="TransactionStatus" type="TransactionStatus"/>
            <xs:element name="ApprovalCode" type="xs:string"/>
            <xs:element name="PreCheckoutTransactionId" type="xs:string" minOccurs="0"/>
            <xs:element name="ExpressCheckoutIndicator" type="xs:boolean" minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:simpleType name="TransactionStatus">
        <xs:restriction base="xs:string">
            <xs:enumeration value="Success"/>
            <xs:enumeration value="Failure"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
        </xs:sequence>
        <xs:anyAttribute/>
    </xs:complexType>
</xs:schema>

HTTP Request Example

<MerchantTransaction>
  <TransactionId>4549794</TransactionId>
  <ConsumerKey>0zMKpm0nFtUv8lLXT97jDRo2bp4vNF8MFYyt3R5R87e3f3f4!414b48675861677159682b563745776b593652377939673d</ConsumerKey>
  <Currency>USD</Currency>
  <OrderAmount>1229</OrderAmount>
  <PurchaseDate>2014-08-01T14:52:57.539-05:00</PurchaseDate>
  <TransactionStatus>Success</TransactionStatus>
  <ApprovalCode>sample</ApprovalCode>
  <PreCheckoutTransactionId>a4a6x55-rgb1c5-hyaqkemj-1-hybxhplo-947</PreCheckoutTransactionId>
      <ExpressCheckoutIndicator>false</ExpressCheckoutIndicator>
</MerchantTransaction>


MerchantTransactionsResponse-Schema

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="MerchantTransactions" type="MerchantTransactions"/>
    <xs:complexType name="MerchantTransactions">
        <xs:sequence>
            <xs:element name="MerchantTransactions" type="MerchantTransaction" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:complexType name="MerchantTransaction">
        <xs:sequence>
            <xs:element name="TransactionId" type="xs:string"/>
            <xs:element name="ConsumerKey" type="xs:string" minOccurs="0"/>
            <xs:element name="Currency" type="xs:string"/>
            <xs:element name="OrderAmount" type="xs:long"/>
            <xs:element name="PurchaseDate" type="xs:dateTime"/>
            <xs:element name="TransactionStatus" type="TransactionStatus"/>
            <xs:element name="ApprovalCode" type="xs:string"/>
            <xs:element name="PreCheckoutTransactionId" type="xs:string" minOccurs="0"/>
            <xs:element name="ExpressCheckoutIndicator" type="xs:boolean" minOccurs="0"/>
          <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
        </xs:sequence>
    </xs:complexType>
    <xs:simpleType name="TransactionStatus">
        <xs:restriction base="xs:string">
            <xs:enumeration value="Success"/>
            <xs:enumeration value="Failure"/>
        </xs:restriction>
    </xs:simpleType>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
        </xs:sequence>
        <xs:anyAttribute/>
    </xs:complexType>
</xs:schema>



HTTP Response Example (response will be identical to the XML sent if call was successful)

<MerchantTransaction>
  <TransactionId>4549794</TransactionId>
  <ConsumerKey>0zMKpm0nFtUv8lLXT97jDRo2bp4vNF8MFYyt3R5R87e3f3f4!414b48675861677159682b563745776b593652377939673d</ConsumerKey>
  <Currency>USD</Currency>
  <OrderAmount>1229</OrderAmount>
  <PurchaseDate>2014-08-01T14:52:57.539-05:00</PurchaseDate>
  <TransactionStatus>Success</TransactionStatus>
  <ApprovalCode>sample</ApprovalCode>
  <PreCheckoutTransactionId>a4a6x55-rgb1c5-hyaqkemj-1-hybxhplo-947</PreCheckoutTransactionId>
       <ExpressCheckoutIndicator>false</ExpressCheckoutIndicator>
  </MerchantTransaction>

MerchantTransactionsXML-Details

MerchantTransactionsRequest	Element	Description	Type	Min - Max
	MerchantTransactions
MerchantTransaction	MerchantTransaction		XML	-
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-
	TransactionID	Uses the TransactionID element of the Checkout XML	String	1-255
	ConsumerKey	Automatically generated when creating a checkout project on MasterPass Merchant portal.	String	97
	Currency	Currency of the transaction. Defined by ISO 4217 to be exactly three characters, such as, USD for US Dollars.	String	3
	OrderAmount	(Integer) Transaction order amount without decimal e.g. 1500.	Integer	1-12
	PurchaseDate	Date and Time of the shopping cart purchase.	Date	XML format
	TransactionStatus	State of the transaction. Indicates whether successful. Valid values are Success or Failure.	String	7
	ApprovalCode	Approval code returned by payment API.	String	6
	PreCheckoutTransactionId	Value returned from the PrecheckoutData call.	String
	ExpressCheckoutIndicator	True or False. Set to false for connected checkout	Boolean
	ExtensionPoint	Reserved for future enhancement. Optional	Any	-

ExtensionPoint Elements

Starting with API v6, all schema container elements contain a new optional element named "ExtensionPoint". These elements are intended to provide expandability of the API without requiring a new major version. These elements are defined to contain a sequence of "xs:any", meaning that any XML content can be contained within the element. In order to ensure future expandability, all integrators must not perform any validation of elements received inside an ExtensionPoint element, beyond any that may be defined by MasterPass in the future with a separate schema. Any such extensions will be optional. Further, only authorized schemas will be allowed inside ExtensionPoint elements, and any unknown elements will be dropped by MasterPass.

ExtensionPoint - Sample

<ExtensionPoint>
  <s:SampleExtension xmlns:s=”https://www.masterpass.com/location/of/example/ns”>
    <s:SampleField>Sample Value</s:SampleField>
  </s:SampleExtension>
  <f:AnotherExampleExtension xmlns:f=”https://www.masterpass.com/location/of/example2/ns>
    <f:SampleContainer>
      <f:AnotherSampleField>Sample Value</f:AnotherSampleField>
    </f:SampleContainer>
  </f:AnotherExampleExtension>
</ExtensionPoint>


Developer Zone Key Renewal Process

Login to MasterCard's Developer Zone (https://developer.mastercard.com), click My Account, then My Dashboard.

On the My Dashboard page, click My Keys button, select the key you want to renew and then click on Renew Key button.

In order to renew the API Key, you need to supply a PEM encoded Certificate Request File. Choose the file, and click Submit. Notice the updated Key ID expiry date.

Note: If the CSR file is different than the CSR that was originally submitted when you created the key, make sure that your application is using the correct key store (.p12), otherwise calls to MasterPass services will fail.

Developer Zone Key Tool Utility

From the Add a Key screen, Click Here, to launch the Key Tool utility.

Click on "Generate Keys and CSR" and then click on "Save to Files". Next screen will prompt you to select the password.

Choose the folder where you want to save the files. This utility will create the PEM and p12 file.

3DS Overview

Service Description

When enrolling for MasterPass,^™ a merchant selects either Basic Checkout services, or Advanced Checkout payer authentication services. Basic Checkout is already offered with the core MasterPass^™ offering, and facilitates a simple checkout experience. Advanced Checkout provides merchants a payer authentication service to enable a merchant to authenticate its transactions with the issuer of the applicable card account leveraging the 3D Secure protocol provided through the MasterCard^® SecureCode or Verified by Visa programs (collectively, the "Programs").

Merchants have two authentication options to choose from when implementing "Buy with MasterPass" Button:

Basic Checkout: A simple checkout experience where a consumer logs in to their MasterPass^™ wallet and selects their payment method for use at the merchant site. The payment method will be returned to the merchant for checkout completion.

• No additional enrollment steps are required for merchant integration with Basic Checkout as it is part of the core MasterPass^™ Online services.

Advanced Checkout: When this option is selected by a merchant, Advanced Checkout will, on behalf of a merchant, attempt authentication leveraging the MasterCard^® SecureCode^™ or Verified by Visa protocols, depending on the card selected by the consumer in connection with the purchase. At this time, MasterPass^™ supports only the brands included here. A merchant may choose this service for each supported card brand offered, such as MasterCard cards, or Visa cards, or for both.

Before 'Advanced Checkout' is selected, a merchant must take the following actions:

• A merchant must first be enrolled in the MasterCard^® SecureCode^™ and/or Verified by Visa program, as applicable, directly with their Acquirer. Merchants should contact their Acquirer in connection with any such enrollment(s).
• Merchant must, in connection with their MasterPass™ enrollment and Advanced Checkout opt-in, provide the applicable Acquiring Merchant ID and Acquirer ID (BIN) for the appropriate card brand. In connection with their Acquirer enrollment, merchants must also provide the Acquiring Merchant ID and Acquirer ID (BIN) for each currency processed (dependent on the applicable Acquirer's processing requirements). Once submitted, it will take 5 business days to complete setup.
• The merchant is responsible for providing accurate Acquirer data to MasterCard in connection with their MasterPass^™ enrollment and for updating such information on a timely basis should it change.
• Providing accurate enrollment data to MasterCard is critical and required-without it, the merchant most likely cannot receive the benefits of the Advanced Checkout service or of the associated Programs.
• The merchant is responsible for submitting correctly formatted authorization and clearing ecommerce values to their payment processor to indicate use of the MasterCard^® SecureCode^™ or Verified by Visa as defined by the Programs, respectively. Specifically, ECI and CAVV (if present) must be amended to the Authorization request.

General Overview of Transaction Authentication

The MasterCard^® SecureCode^™ and Verified by Visa payer authentication programs (also, "Programs") are based on the 3-D Secure Protocol.

Service Process Flow for Merchant who Select Advanced Checkout

1. Consumer shops online at merchant website and selects the MasterPass^™ Checkout Button to pay.
2. The consumer logs into their wallet to access payment and shipping information.
3. The consumer selects their MasterCard, Maestro or Visa Card for a payment.
4. Based on the payment information provided, the MasterPass^™ system receives a cmpi_lookup message in order to check the card participation in the applicable card issuer's payer authentication.
5. Based on the response, the status of the consumer's participation in the applicable Program will be identified. The three responses include an enrolled, not enrolled, and unavailable for authentication.
6. If the card is not enrolled or unavailable, there will be no consumer interaction with their issuing bank and the applicable consumer's MasterPass^™ Wallet
1. Data will be returned to the merchant via MasterPass^™ indicating that the merchant attempted to authenticate the consumer with the issuer. The merchant will need to pass these data elements in the authorization request, specifically the ECI value.
7. If the response is the consumer is enrolled in the applicable Program, the consumer will have an interaction with their issuing bank. Below are the four consumer experiences that can occur. This is controlled only by the card issuer and not the bank providing the MasterPass^™ Wallet service.
1. Consumer enters issuer challenge
2. Consumer is asked to Activate their card for 3-D Secure
3. Attempts (Visa US only scenario)
4. Risk Based
   Data will be returned indicating that the merchant attempted to authenticate the consumer with the issuer, the merchant will need to pass these data elements in the authorization request, specifically the ECI value, and AAV or CAVV.
8. The issuing bank encrypts the results of authentication between the consumer and their issuing bank and returns this value to MasterPass.
9. MasterCard will receive a response indicating the result of authentication between the consumer and their Issuing Bank. Below are the scenarios that can occur.
1. Consumer Fully Authenticates
2. Consumer Attempted Authentication (Prompted for Activation During Shopping and did Not Activate their Card)
3. Failed Authentication
4. Issuing bank Unavailable
5. Attempts/Risk Based Authentication
10. Based on the Authentication response from Cardinal, MasterCard will prompt the consumer for another form of payment or send back the authentication details to the Merchant for processing of the transaction.
11. The authentication data sent back will be:
1. AAV (Accountholder Authentication Value): This value is generated by the issuer and presented to the merchant for placement in the authorization request upon successful authentication of the consumer
2. Authentication Method Used - Value should be created by Wallet for merchant to receive (Initial possible values: "merchant only" or "3DS". "No Authentication" indicates 3DS was not invoked.
3. Card Enrollment status - Value should be created by Wallet for merchant to receive (Initial possible values: "manual" ; "directly provisioned" ; "3DS manual")
4. ECI (electronic commerce indicator) Flag
5. Pa Res Status
6. Secure Code Enrollment Status
7. Signature Verification
8. SLI (SecureCode Level Indicator)
12. Specifically the CAVV and the ECI value must be amended to the authorization in clearing messages in accordance with program rules.

Important Merchant Information

MasterCard does not represent or warrant that the Advanced Checkout service referenced herein is free from defects and mistakes and provides the service on an "as is" basis. No particular results are promised or assured. Merchant expressly assumes all risk for the use of the Advanced Checkout service. MasterCard, at all times, and in its sole discretion, reserves the right to begin and stop supporting any particular brand, service and/or type of payment transaction.

Merchant indemnifies and holds harmless MasterCard from and against any claim, demand, loss, cost, or expense arising from or relating to use of the Advanced Checkout services. MasterCard expressly disclaims any responsibility with regard to the acts or omissions of any Merchant or other person in regard to its compliance with applicable law or regulation. The signing or electronic signature of the MasterPass^™ Merchant Terms of Use for MasterPass^™ services inclusive of Advanced Checkout, and the submission of any other forms related thereto, including the Information Sheet referenced above, indicates that the Merchant understands and agrees to the terms and conditions set forth herein. Merchant acknowledges that its acceptance of these terms and conditions is relied upon by MasterCard in permitting the Merchant's participation in MasterPass^™ and Advanced Checkout.

© 2014 MasterCard. Proprietary and Confidential. All rights reserved.
